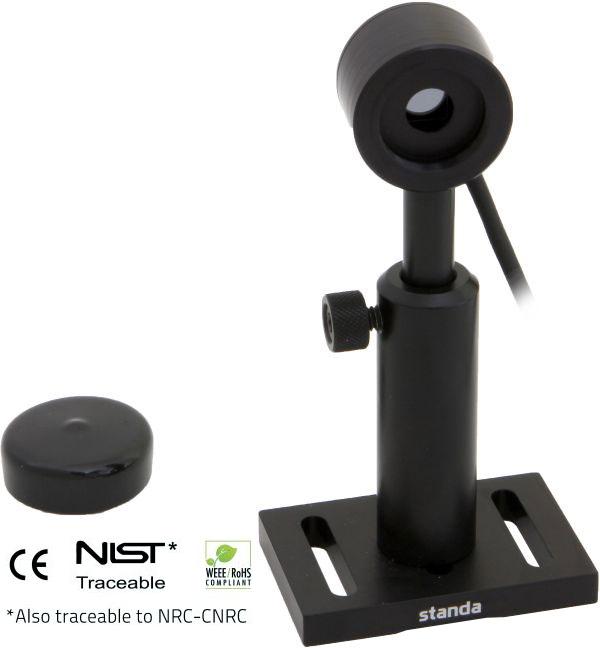

11PH - Photodetector


		Zoom in

		Printable version

		View drawings

		User Manual


		Large Apertures 10 mm Ø for the Silicon sensors
		3 Version • Silicon: 350 - 1080 nm, up to 750 mW • Silicon-UV: 210 - 1080 nm, up to 25 mW • Germanium: 800 - 1650 nm, up to 500 mW
		Choice of Attenuators • OD0.3: 50 % Transmission (for 11PH100-SiUV only) • OD1: 10 % Transmission • OD2: 1 % Transmission
		High Accuracy The new 11PH100-Si-HA presents the lowest calibration uncertainty to date
		Precise Calibration Wavelength selection in 1 nm steps
		Smart Interface Containing all the calibration data

11PH series silicon photodetectors provide a generous aperture for laser beams up to 10 mm in diameter. The threaded aperture allows you to install filters, attenuators, fiber optic adapters or other optics that suit your specific needs. All of the detectors have a NIST traceable calibration and Personal wavelength correction™. This is the choice for typical low power CW lasers from 210 to 1650 nm. To extend the performance of the photo detectors to higher measurable powers you can select one of our attenuators. The transmission of the OD1 is 10% and the transmission of the OD2 is 1%. When bought together, the detector is calibrated with and without the attenuator.

Previous models are currently on sale

Specifications

Model	11PH100-Si-HA	11PH100-SiUV	11PH20-Ge
MAX AVERAGE POWER (ALONE / WITH OD2)	36 mW / 750 mW	4 mW / 30 mW	30 mW / 500 mW
EFFECTIVE APERTURE	10 mm Ø	10 mm Ø	5 mm Ø
MEASUREMENT CAPABILITY
Spectral Range	350 – 1080 nm	210 – 1080 nm	800 – 1650 nm
With OD0.3	---	210 – 1080 nm	---
With OD1	420 – 1080 nm	400 – 1080 nm	900 – 1650 nm
With OD2	630 – 1080 nm	---	950 – 1650 nm
Maximum Measurable Power ^a	36 mW @ 1064 nm	4 mW @ 532 nm	30 mW @ 1064 nm
With OD0.3	---	11 mW @ 300 nm	---
With OD1	300 mW @ 1064 nm	25 mW @ 532 nm	300 mW @ 1064 nm
With OD2	750 mW @ 1064 nm	---	500 mW @ 1064 nm
Noise Equivalent Power ^b	10 pW @ 980 nm	10 pW @ 850 nm	60 pW @ 1550 nm
Rise Time (nominal)	0.2 sec	0.2 sec	0.2 sec
Peak Sensitivity	0.5 A/W @ 980 nm	0.45 A/W @ 850 nm	0.98 A/W @ 1550 nm
Calibration Uncertainty	±6.0 % (350 - 399 nm) ±2.0 % (400 - 449 nm) ±1.5 % ( 450 - 940 nm) ±2.0 % (941 - 980 nm) ±5.0 % (981 - 1049 nm) ±7.0 % (1050 - 1080 nm)	±8 % (200 - 219 nm) ±6.5 % (220 - 399 nm) ±2.5 % (400 - 899 nm) ±3.5 % (900 - 999 nm) ±5 % (1000 - 1049 nm) ±7 % (1050 - 1080 nm)	±3.5 % (800 - 1650 nm) --- --- --- --- ---
Calibration Uncertainty (with OD filters)	±4.0 % (420 - 980 nm) ±5.0 % (981 - 1049 nm) ±7.0 % (1050 - 1080 nm)	±6.5 % (210 - 399 nm) ±5 % (400 - 1049 nm) ±7 % (1050 - 1080 nm)	±5 %
DAMAGE THRESHOLDS
Maximum Average Power Density	100 W/cm²	100 W/cm²	100 W/cm²
PHYSICAL CHARACTERISTICS
Effective Aperture	10 mm Ø	10 mm Ø	5 mm Ø
Dimensions	38.1O x 27.4D mm	38.1O x 27.4D mm	38.1O x 27.4D mm
Weight (head only)	130 g	130 g	130 g
