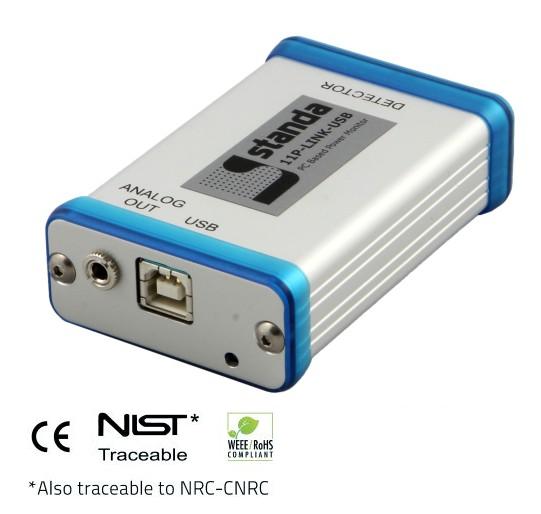

11P-LINK compact interface box is the choice for users who want to do all power meters control as well as the analysis from their computer. With its impressive features for statistics calculation and display options, the 11P-LINK is also an answer to scientific or OEM users who need a low-cost computer based power monitor. Because of very compact size and advanced features the 11P-LINK is the perfect choice for integration in machines. You can control it with our 11PC-LINK software or with PC serial commands. You can even connect many 11P-LINK units to a single computer, which makes it a device of choice for the simultaneous monitoring of many power detectors. The 11P-LINK will recognize the power meter as soon as it is plugged in. Only menus that function for that head will appear. Moreover, the 11P-LINK will auto-calibrate using the data stored in the intelligent connector to ensure the most accurate measurement possible.
Compatible with all 11UP, 11XLP12 laser power detectors and 11PH photo detectors.
Specifications
| Monitor |
11P-LINK |
11P-LINK-4 |
| Detector Types |
Thermopiles, Photo Detectors |
Thermopiles, Photo Detectors |
| Channels / Display |
1-Channel / PC-Based |
4-Channel / PC-Based |
| POWER METER SPECIFICATIONS |
| Power Range |
| Thermopile |
3 µW to 30 kW |
3 µW to 30 kW |
| Photo Detector |
1 pW to 3 W |
1 pW to 3 W |
| Monitor Accuracy |
±0.5 % full scale |
±0.5 % full scale |
| Statistics |
a Current Value, Max, Min, Average, Std Dev., RMS & PTP Stability, Time |
b Current Value, Max, Min, Average, Std Dev.,RMS & PTP Stability, Time |
| DETECTOR COMPATIBILITY |
| Thermopile |
Average Power & Single Shot Energy |
Average Power |
| Photo Detector |
Average Power (mW, dBm) |
Average Power (mW) |
| GENERAL SPECIFICATIONS |
| Number of Channels |
1 |
4 |
| Digital Display |
Computer Screen |
Computer Screen |
| Data Display |
a Real Time, Histogram, Statistics, Digital Tuning Needle |
b Real Time, Graphic, Statistics, High/Low Alarm, Post-Analysis Mode, Multi-Channel |
| Analog Output |
0 - 2 Volt, Adjustable, Full Scale, ±1 % |
N/A |
| Serial Commands and Data Transfer |
Via USB (standard) or RS-232 (option) |
USB (standard) or Ethernet (option) |
| Real Time Data Transfer Rate |
10 Hz |
10 Hz |
| Dimensions |
57W x 26H x 91D mm |
286W x 233H x 43D mm |
| Weight |
0.12 kg |
2.5 kg |
External Power Supply
(RS-232 and Ethernet versions only) |
100/240 VAC 50-60 Hz to 12 VDC 200 mA |
100/240 VAC 50-60 Hz to 9-12 VDC 100 mA | Specifications are subject to change without notice
a Using PC-LINK software.
b Using Octolink software.
|
