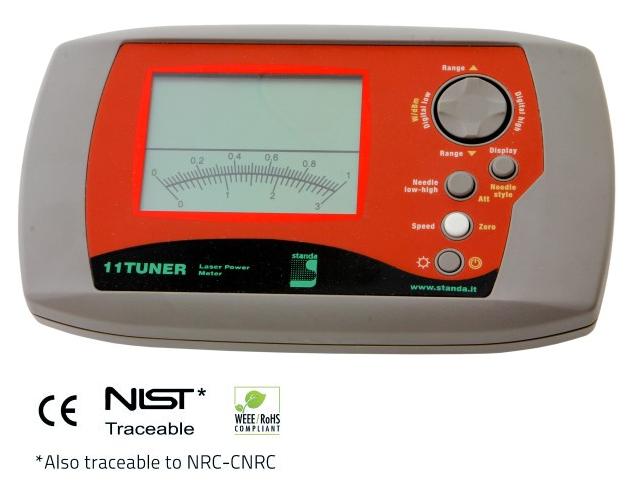

11TUNER Power Monitor presents both a large LCD display and an ultrafast needle, up to 10X faster than anything else on the market. It comes with more features than the competition, like min and max holds for both displays, comet tail needle and bargraph function. 11TUNER also comes in STANDA’s ergonomic design, with a large LCD display and easy to use direct access keys.
Needle modes:
Compatible with all 11UP, 11XLP12 laser power detectors and 11PH photo detectors.
Specifications
| Monitor |
11TUNER |
| Detector Types |
Thermopiles, Photo Detectors (11PH Series) |
| Display |
LCD with Tuning Needle and Backlight |
| POWER METER SPECIFICATIONS |
| Power Range |
10 pW to 10 kW |
| Digital Resolution |
| 11PH Series |
10 pW |
| 11XLP Series |
1 µW |
| 11UP Series |
1 mW |
| 11HP Series |
100 mW (HP60A), 1 W (HP100A) |
| Monitor Accuracy |
±1 %, full scale |
| Statistics |
Min, Max |
| DETECTOR COMPATIBILITY |
| Thermopiles |
Average Power (W, dBm) |
| Photo Detectors (11PH Series) |
Average Power (W, dBm) |
| GENERAL SPECIFICATIONS |
| Digital Display Size |
77 x 58 mm LCD |
| Needle Display |
Ultrafast Tuning Needle |
| Needle Accuracy |
0.9 % |
| Refresh Rate |
4 Hz |
| Analog Output |
0-1 Volt, Full Scale, ±1 % |
| Dimensions (Without Stand) |
210W x 122H x 44D mm |
| Weight (With Batteries) |
0.47 kg |
| Battery Type |
4 x AA Alkaline |
| Battery Life (Estimated) |
300 hours with detector |
| External Power Supply |
100/240 VAC 50-60 Hz to 9 VDC 1.66 A | Specifications are subject to change without notice
|
