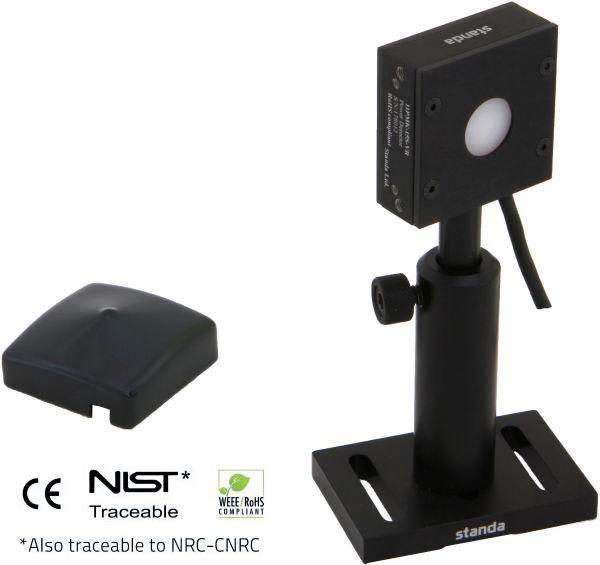

The 11UP series detectors can take a lot of laser power in a small body. They come ready to mount on a rod, a bracket and the square case even lets you set them right on the table. The 11UP19-15S-H5, just 21 mm thin, is ideal for laser maintenance and service applications. From a few mW to 15 W it is the smallest, toughest and fastest detector in its class. The absorber handles 36 kW/cm² of average power density. You can even run it up to 23 watts for short periods. With Energy Mode option every member of 11UP19-H family can be equipped to measure single shot pulse energies as well as average power. From 20 mJ up to 5 J Q-switched or 25 J long pulse. 11UP19-H often used with CO2, Ti: sapphire, Diode (pulsed or CW), YAG (diode pumped, CW or high rep. rate), Ruby (long pulse), DPSSL, Excimer, Argom ion lasers. Specifications
| Model |
11UP19K-15S-H5 |
11UP19K-30H-H5 |
11UP19K-50L-H5 |
11UP19K-110F-H9 |
11UP19K-150W-H5 |
11UP19K-200W-H9 |
| MAX AVERAGE POWER (CONTINUOUS / 1 MINUTE) |
15 W / 30 W |
30 W/ 60 W |
50 W / 90 W |
110 W / 150 W |
150 W f / 190 W f |
200 W f / 200 W f |
| EFFECTIVE APERTURE |
19 mm Ø |
19 mm Ø |
19 mm Ø |
19 mm Ø |
19 mm Ø |
19 mm Ø |
| COOLING METHOD |
Convection |
Heatsink |
Large Heatsink |
Fan-Cooled |
Water-Cooled |
Water-Cooled |
| MEASUREMENT CAPABILITY |
| Spectral Range * |
0.19 – 20 µm |
0.19 – 20 µm |
0.19 – 20 µm |
0.19 – 20 µm |
0.19 – 20 µm |
0.19 – 20 µm |
| Noise Equivalent Power a |
1 mW |
1 mW |
1 mW |
3 mW |
1 mW |
3 mW |
| Rise Time (nominal) b |
0.6 sec |
0.6 sec |
0.6 sec |
1.5 sec |
0.6 sec |
1.5 sec |
| Sensitivity (typ into 100 k Ω load) c |
0.65 mV/W |
0.65 mV/W |
0.65 mV/W |
0.23 mV/W |
0.65 mV/W |
0.23 mV/W |
| Calibration Uncertainty d |
±2.5 % |
±2.5 % |
±2.5 % |
±2.5 % |
±2.5 % |
±2.5 % |
| Repeatability |
±0.5 % |
±0.5 % |
±0.5 % |
±0.5 % |
±0.5 % |
±0.5 % |
| Energy Mode |
| Sensitivity |
0.65 mV/J |
0.65 mV/J |
0.65 mV/J |
0.23 mV/J |
0.65 mV/J |
0.23 mV/J |
| Maximum Measurable Energy e |
15 J |
15 J |
15 J |
25 J |
15 J |
25 J |
| Noise Equivalent Energy a |
0.02 J |
0.02 J |
0.02 J |
0.06 J |
0.02 J |
0.06 J |
| Minimum Repetition Period |
4 sec |
4 sec |
4 sec |
4 sec |
4 sec |
4 sec |
| Maximum Pulse Width |
88 ms |
88 ms |
88 ms |
88 ms |
88 ms |
88 ms |
| Accuracy with energy calibration option ±5 % ±5 % ±5 % ±5 % ±5 % ±5 % |
| DAMAGE THRESHOLDS |
| Maximum Average Power Density g |
36 kW/cm2 |
36 kW/cm2 |
36 kW/cm2 |
45 kW/cm2 |
36 kW/cm2 |
45 kW/cm2 |
| Pulsed Laser Damage Thresholds |
Max Energy Density |
Peak Power Density |
| 1064 nm, 360 µs, 5 Hz |
5 J/cm2 (H5), 9 J/cm2 (H9) |
14 kW/cm2 (H5), 25 kW/cm2 (H9) |
| 1064 nm, 7 ns, 10 Hz |
1 J/cm2 |
143 MW/cm2 |
| 532 nm, 7 ns, 10 Hz |
0.6 J/cm2 |
86 MW/cm2 |
| 266 nm, 7 ns, 10 Hz |
0.3 J/cm2 |
43 MW/cm2 |
| PHYSICAL CHARACTERISTICS |
| Effective Aperture |
19 mm Ø |
19 mm Ø |
19 mm Ø |
19 mm Ø |
19 mm Ø |
19 mm Ø |
| Absorber (High Damage Threshold) |
H5 |
H5 |
H5 |
H9 |
H5 |
H9 |
| Dimensions |
50H x 50W x 20.6D mm |
50H x 50W x 56.3D mm |
76.2H x 76.2W x 74.7D mm |
54.2H x 54.2W x 55.6D mm |
50H x 50W x 33D mm |
50H x 50W x 33D mm |
| Weight (head only) |
0.16 kg |
0.21 kg |
0.48 kg |
0.25 kg |
0.24 |
kg 0.24 kg | Specifications are subject to change without notice
* For the calibrated spectral range, see the user manual.
a. Nominal value, actual value depends on electrical noise in the measurement system.
b. With STANDA 11MAESTRO, 11UNO, 11P-LINK, 11TUNER and 11S-LINK monitors.
c. Maximum output voltage = sensitivity x maximum power.
d. Including linearity with power.
e. For 360 µs pulses. Higher pulse energy possible when customized for long pulses (ms), less for short pulses (ns).
f. Minimum cooling flow 0.5 liters/min, water temperature ≤ 22°C, 1/8 NPT compression fittings for 1/4 inch semi-rigid tube. Contact STANDA for clean deionized water cooling module option.
g. At 1064 nm, 10 W CW.
