| Specifications |
 |
| Travel range | |
|
|
|
|
| Tilt Θy | | ±2.5°
|
|
|
|
| Tip (Rotation) Θz | | ±3°
|
|
|
|
| Resolution | |
|
|
|
|
| Tilt | | request
|
|
|
|
| Tip (Rotation) | | request
|
|
|
|
| Backlash | | 0
|
|
|
|
| Maximum Speed | |
|
|
|
|
| Tilt Θy | | 0,9 °/s
|
|
|
|
| Tip (Rotation) Θz | | 1,4 °/s
|
|
|
|
| Limit Switches | | 2 Opto
(one per axis)
|
|
|
|
| Lead Screw pitch | | 0.5 mm
|
|
|
|
| Load Capacity | |
|
|
|
|
| Horizontal | | up to 25 kg
|
|
|
|
| Installed Motorized Actuators | | 8CMA35-30
|
|
|
|
| Recommended Controllers | | 8SMC5-USB series
|
|
|
|
| Recommended Power Supply | |
|
|
|
|
| Motor Connector | | HDB15(M)
(each axis)
|
|
|
|
| Cable Length (default) | | 1.1 m
|
|
|
|
| Base Material | | Aluminum Alloy
|
|
|
|
| Finish | | Black Anodizing
|
|
|
|
| Tilt Stage Dimensions | |
|
|
|
|
| (LxWxH) | | 363x 250 x 54 mm
|
|
|
|
| Moving Platform | |
|
|
|
|
| Dimensions | | 250 x 190 mm
|
|
|
|
| Weight | | 6.8 kg |
|
|
|
|
|
|
|
Product added to the Wishlist
| Ordering Information |
|
| Model |
|
 |
|
|
|
Description |
|
Price |
|
Availability |
|
|
|
|
|
|
| 8MTP250 |
|
 |
|
|
|

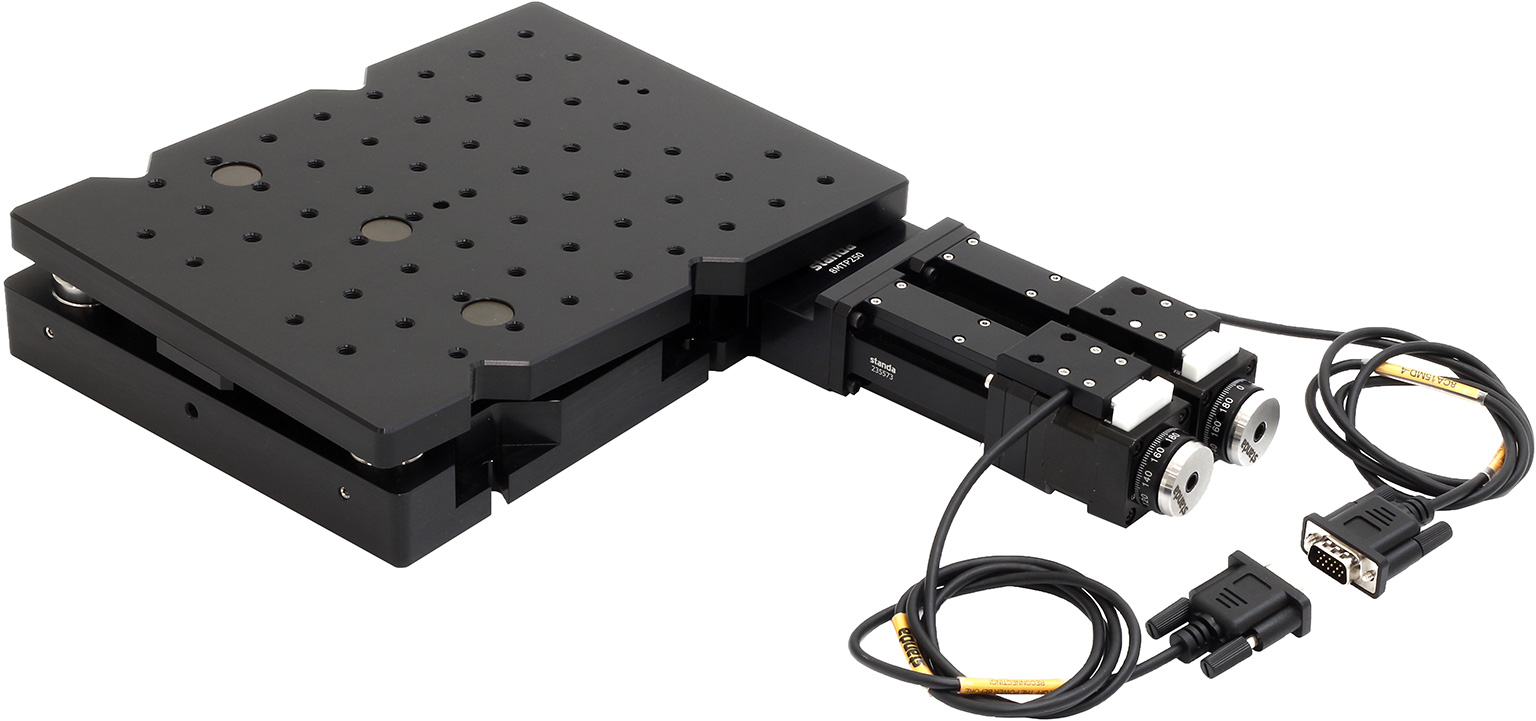

2 Axis Motorized Precision Tip Tilt Table |
|
request |
|
2 weeks |
|
|
|
|
|
| 8MTP250-MEn9 |
|
|
|
|
|
2-Axis Motorized Precision Tip Tilt Table
with Rotary Encoder |
|
request |
|
2 weeks |
|
|
|
|
|
|
|
