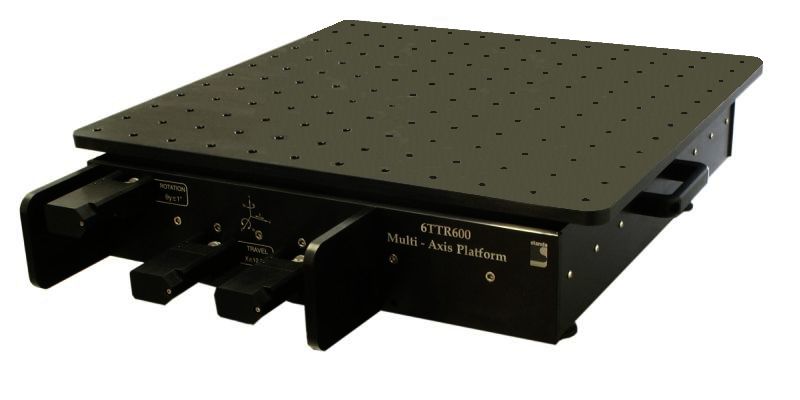

6TTR600 - Large Multi-Axis Platform


		Zoom in

		Printable version

		View drawings


		For large and heavy mirror, Ø about 600 mm
		High precision
		Super stable
		Operation from one side
		Any optics up to 50 kg (higher load capacity by request)
		Alternative mounting holes pattern available by request

Specifications

Travel X		±12,5 mm



	Tracking accuracy	5 μm



Rotation Θy		±1°



	Sensitivity	1 arcsec



Tilt Θz		±1°



	Sensitivity	1 arcsec



Load capacity		50 kg



Weight		58 kg

Ordering Information

Model

Price

Availability

6TTR600

€ 6889.00

request
