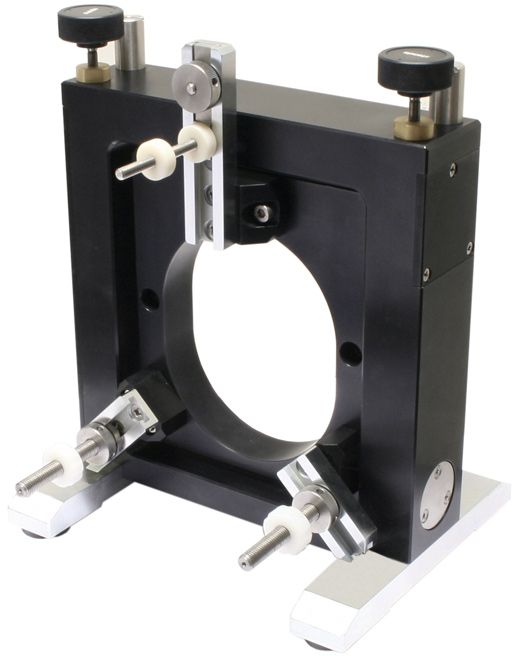

5AM-250, 5TAM-250 - Precise Adjustment Kinematic Mount for Large Optics
Precise Adjustment Kinematic Mount for Large Optics
Zoom in
Printable version
View drawings
Download 3D
Rigid design
Long-term stability
Compact
Adjustment screws thread pitch - 0,35 mm
Vertical screws placement
Additional accessories
Optics diameter up to 500 mm on request



Mount for large opticsSupper fine and stable Large Kinematic Optical Mount for large and heavy optics. The mount is designed for reflection optics. Optionally universal element holder can be mounted from the backside of the holder to easily adapt the holder for test parts of various sizes and shapes.

* Optics diameter up to 500 mm on request
** Optics thickness up to 100 mm on request


Related products

Lenses Dielectric Coated Optics Metallic Coated Optics


Specifications
Fine screw threadM6x0.35
Horizontal rotation range±1,5°
Vertical yaw range±1,5°
Sensitivity0,5 arcsecond
Load capacity
5AM-25010 kg
5TAM-2506 kg
Compatible with optical elements
Diameter: 115÷250 mm*
Thickness: up to 52 mm**
Weight:10,1 kg
Ordering Information
Model Adjustment
Axes
Weight,
kg
Precision
Displacement
Range of
X-Axis
Price Availability
5AM-250 2 10.1 - € 1248.00 today
5TAM-250 3 10.3 30 mm € 1639.00 today
