| Specifications |
 |
| Travel range | |
|
|
|
|
| Tilt Θy | | ±2.5°
|
|
|
|
| Rotation Θz | | ±3°
|
|
|
|
| Sensitivity | |
|
|
|
|
| Tilt Θy | | 0.6 arcsec
|
|
|
|
| Rotation Θz | | 1 arcsec
|
|
|
|
| Load capacity | |
|
|
|
|
| Horizontal | | up to 25 kg
|
|
|
|
| Tilt stage dimensions | |
|
|
|
|
| (LxWxH) | | 314 x 250 x 54 mm
|
|
|
|
| Moving platform | |
|
|
|
|
| dimensions | | 250 x 190 mm
|
|
|
|
| Weight | | 5.9 kg |
|
|
|
|
|
|
|
Product added to the Wishlist
| Ordering Information |
|
| Model |
|
 |
|
|
|
Description |
|
Price |
|
Availability |
|
|
|
|
|
|

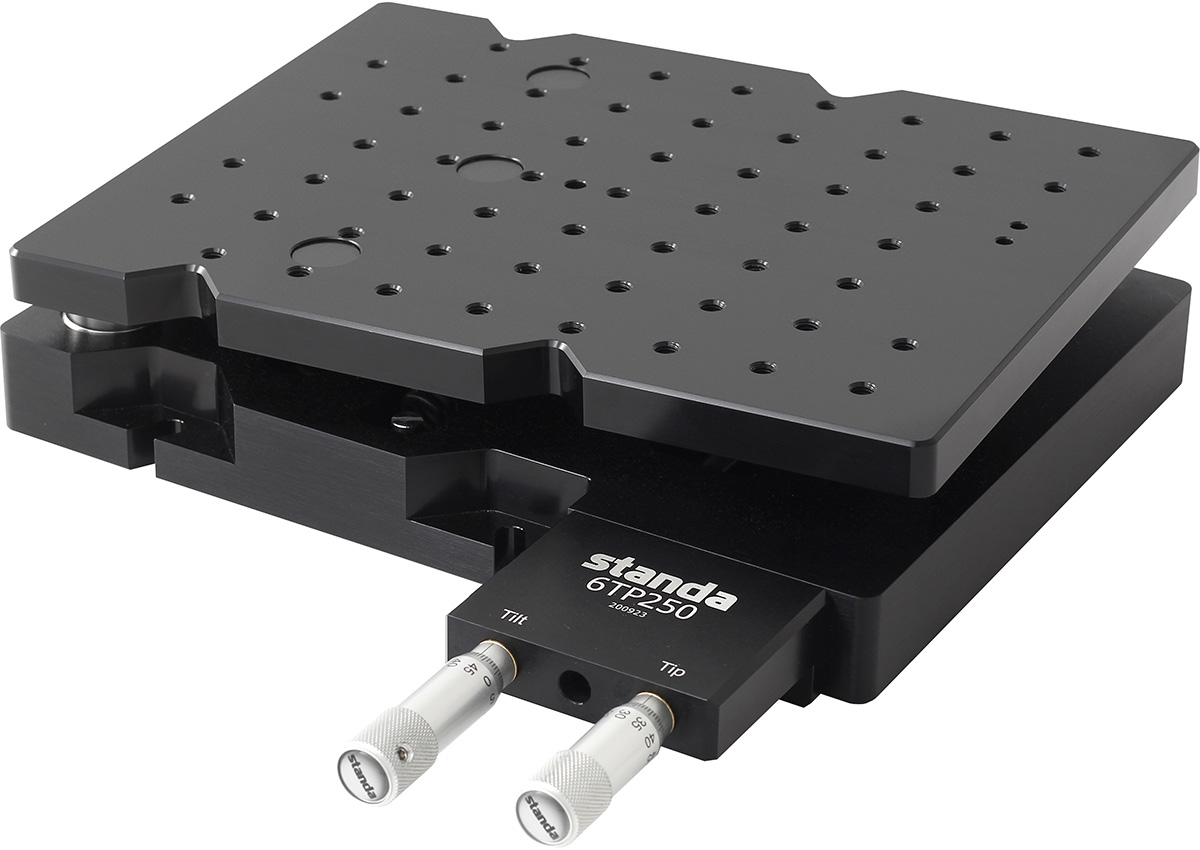

| 6TP250 |
|
 |
|
|
|
Multi-Axis Tilt Platform |
|
€ 940.00 |
|
1 week |
|
|
|
|
|
| 6TP250V |
|
|
|
|
|
Multi-Axis Tilt Platform for Vacuum |
|
request |
|
request |
|
|
|
|
|
|
|
