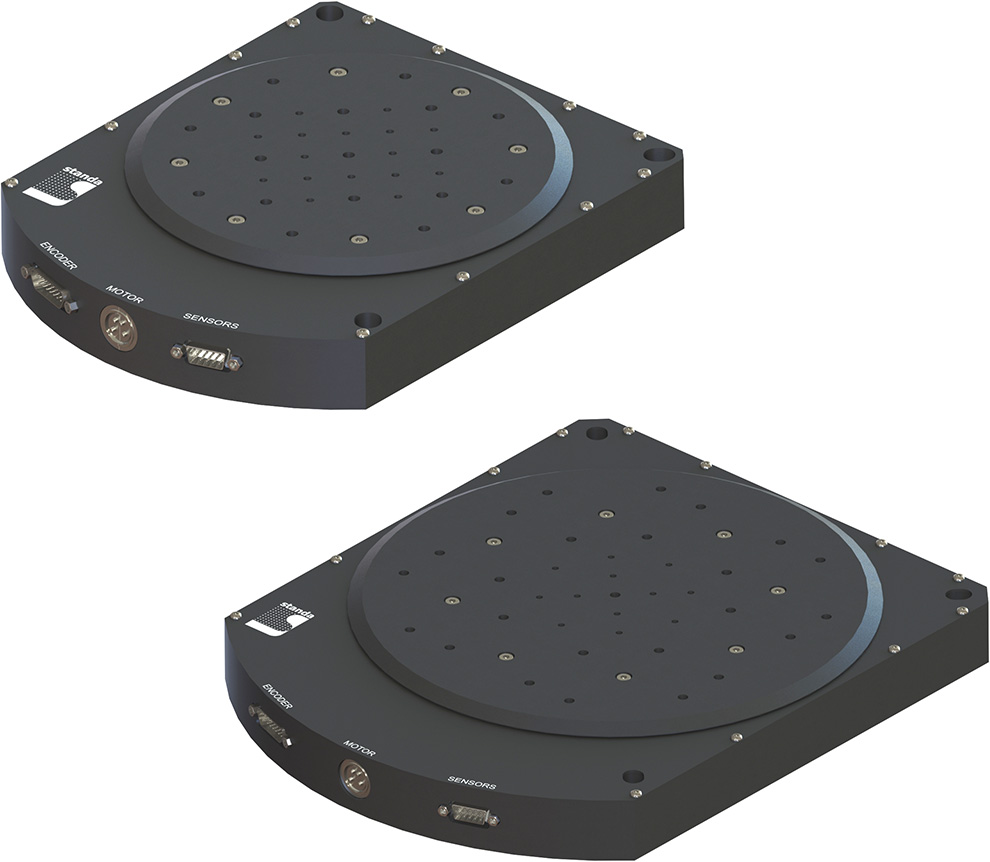

Standa 8MRL series rotation stages are based on direct drive torque motors in order to avoid mechanical inaccuracies (e.g. backlash) and reach high dynamical response of rotation system.
Ironless design of motor allows high acceleration and high velocity and it perfectly suits for a start-stop application which is especially important in: 3D printing, laser fabrication, wafer scanning or PCB etching applications.
High quality bearings and feedback system allows user to reach high positioning accuracy. Mechanical accuracy of stages is personally mapped using laser autocollimator in order to avoid constant inaccuracy. User is allowed to choose up to x200 interpolation using Standa external interpolation system or fit necessary servo controller with internal interpolation circuit for higher resolution of stage. 8MRL series stages are capable to operate with <4 arcsec bi-directional repeatability.
| 8MRL180 | 8MRL250 |
| Motion Control |
| Travel range(Coarse/Fine), deg | 360/360 | 360/360 |
| * Encoder type | 1Vpp Analoge inductance | 1Vpp Analoge inductance |
| ** Encoder resolution, arcsec | 2 | 1 |
| Bidirectional repeatability, arcsec | 5 | 4 |
| Unidirectional repeatability, arcsec | On request | On request |
| Accuracy (before calibration), arcsec | 50 | 40 |
| Axial runout, um | 30 | 30 |
| Radial runout, um | 30 | 20 |
| Backlash, arcsec | 0 | 0 |
| Maximal speed, deg/s | 6600 | 3300 |
| Limit Switches/ Referene mark | Reference mark | Reference mark
|
| Switch polarity/ Reference mark interface | RS422 | RS422 |
| Load and Transmision information |
| Horizontal load capacity, kg | 12 | 20 |
| Vertical load capacity, kg | 12 | 15 |
| Transmision type | direct drive | direct drive |
| Motor type | 3-phase brushless motor | 3-phase brushless motor |
| Nominal Torque, Nm | 6,4 | 6,9 |
| Peak Torque, Nm | 21,6 | 22,9 |
| Bearing type | 4 contact ball bearings | 4 contact ball bearings |
| Control and Communication |
| Recommended controllers | SPiiPlusEC | SPiiPlusEC |
| Recommended driver | UDMlc series | UDMlc series |
| Recommended power supply | PS36-4.4-4 | PS36-4.4-4 |
| Connector | on request | on request |
| Cable length | on request | on request |
| Material and enviroment conditions |
| Base material | Aluminum | Aluminum |
| Finish | Black anodized | Black anodized |
| Environment pressure | up to 10-3 Torr | up to 10-3 Torr |
| Ambient temperature | on request | on request |
| Accessories |
| Base plate | 3BP8MRL180 | 3BP8MRL250 |
| Connecting plate | on request | on request |
| Additional Details |
| Rotating platform diameter, mm | 180 | 250 |
| Measurement system | metric | metric |
| Weight, kg | 5 | 9 |
| Central aperture | on request | on request |
* - Encoder can be equipped with external interpolation circuit which will result differential RS422 encoder interface.
** - Resolution is indicated using analog encoder interface. While increasing the factor of external interpolation circuit the higher resolution can be adjusted for specific applications.
|
