8MR191 - Motorized Rotary Stage |
|
 |
|
|
|
|
 |
|

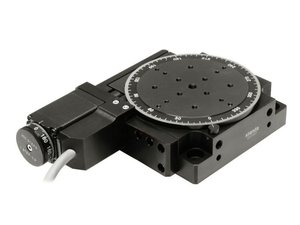

Motorized Rotary Stage
|
|
|
360° rotation graduated in 1°
|
|
|
Three types of platform:
- without central hole (8MR191)
- M27x1 for 1" optics mounting (8MR191-1)
- Ø30mm aperture (8MR191-30)
|
|
|
Resolution 4.5 arcsec in 1/8 step. |
| |
|
| |
8MR191-28
| Specifications |
8MR191-28 |
8MR190V-VSS42 |
8MR191-DCE |
| Rotation range |
360° |
360° |
360° |
| Resolution in full step |
0.6arcmin (0.01°) |
0.6arcmin (0.01°) |
|
| Max.rotation speed |
8turn/min |
2turn/min |
|
| Backlash |
0 |
0 |
0 |
| Wobble |
0.5arcmin |
0.5arcmin |
0.5arcmin |
| Eccentricity |
10µm |
10µm |
10µm |
| Load capacity |
| Horizontal |
10kg |
10kg |
|
| Vertical |
2kg |
2kg |
|
| Torque |
1Nm |
0.6Nm |
|
| Weight |
1kg |
1kg |
|
| Motor |
28 |
VSS42 |
|
| Recommended controllers |
8SMC5-USB |
8DCMC1-USB
8SMC5-USB |
| Mechanical home reference switch |
1, pushed is "closed" |
| Model |
8MR191-28 |
8MR191-4247 |
8MR191-4233 |
8MR191-ZSS43 |
8MR190V-VSS42 |
| Connector |
HDB15(M) |
DB9(M) |
DB9(M) |
DB9(M) |
HDB15(M) |
| Cable |
integrated
1.6 m length |
on request |
on request |
on request |
2 m length, non vacuum |
|
| |
|
Product added to the Wishlist
| Ordering Information |
|
| Model |
|
|
|
Platform
Hole |
|
Stepper Motor Type |
|
|
|
|
|
|
|
|
| 8MR191 |
|
metric |
|
- |
|
- |
|
|
|
|
|
|
|
| 8MR191-28 |
|
metric |
|
- |
|
28 (0.67A, 200 steps) |
|
|
|
|
|
|
|
| 8MR191-4233 |
|
metric |
|
- |
|
4233 (0.4A, 200 steps) |
|
|
|
|
|
|
|
| 8MR191-4247 |
|
metric |
|
- |
|
4247 (1.2A, 200 steps) |
|
|
|
|
|
|
|
| 8MR191-SM |
|
metric |
|
- |
|
All-in one Smart Motor system |
|
|
|
|
|
|
|
| 8MR191-ZSS43 |
|
metric |
|
- |
|
ZSS43 (1.2 A, 200 steps) |
|
|
|
|
|
|
|
| 8MR190V-VSS42 |
|
metric /
vacuum |
|
- |
|
VSS42 |
|
|
|
|
|
|
|
| 8MR191-1 |
|
metric |
|
1" |
|
- |
|
|
|
|
|
|
|
| 8MR191-1-28 |
|
metric |
|
1" |
|
28 (0.67A, 200 steps) |
|
|
|
|
|
|
|
| 8MR191-1-4233 |
|
metric |
|
1" |
|
4233 (0.4A, 200 steps) |
|
|
|
|
|
|
|
| 8MR191-1-4247 |
|
metric |
|
1" |
|
4247 (1.2A, 200 steps) |
|
|
|
|
|
|
|
| 8MR191-1-SM |
|
metric |
|
1" |
|
All-in one Smart Motor system |
|
|
|
|
|
|
|
| 8MR191-1-ZSS43 |
|
metric |
|
1" |
|
ZSS43 (1.2 A, 200 steps) |
|
|
|
|
|
|
|
| 8MR190V-1-VSS42 |
|
metric /
vacuum |
|
1" |
|
VSS42 |
|
|
|
|
|
|
|
| 8MR191-30 |
|
metric |
|
30 mm |
|
- |
|
|
|
|
|
|
|
| 8MR191-30-28 |
|
metric |
|
30 mm |
|
28 (0.67A, 200 steps) |
|
|
|
|
|
|
|
| 8MR191-30-4233 |
|
metric |
|
30 mm |
|
4233 (0.4A, 200 steps) |
|
|
|
|
|
|
|
| 8MR191-30-4247 |
|
metric |
|
30 mm |
|
4247 (1.2A, 200 steps) |
|
|
|
|
|
|
|
| 8MR191-30-SM |
|
metric |
|
30 mm |
|
All-in one Smart Motor system |
|
|
|
|
|
|
|
| 8MR191-30-ZSS43 |
|
metric |
|
30 mm |
|
ZSS43 (1.2 A, 200 steps) |
|
|
|
|
|
|
|
| 8MR190V-30-VSS42 |
|
metric /
vacuum |
|
30 mm |
|
VSS42 |
|
|
|
|
|
|
|
| 8MR191E |
|
imperial |
|
- |
|
- |
|
|
|
|
|
|
|
| 8MR191E-28 |
|
imperial |
|
- |
|
28 (0.67A, 200 steps) |
|
|
|
|
|
|
|
| 8MR191E-4233 |
|
imperial |
|
- |
|
4233 (0.4A, 200 steps) |
|
|
|
|
|
|
|
| 8MR191E-4247 |
|
imperial |
|
- |
|
4247 (1.2A, 200 steps) |
|
|
|
|
|
|
|
| 8MR191E-SM |
|
imperial |
|
- |
|
All-in one Smart Motor system |
|
|
|
|
|
|
|
| 8MR191E-ZSS43 |
|
imperial |
|
- |
|
ZSS43 (1.2 A, 200 steps) |
|
|
|
|
|
|
|
| 8MR190EV-VSS42 |
|
imperial /
vacuum |
|
- |
|
VSS42 |
|
|
|
|
|
|
|
| 8MR191E-1 |
|
imperial |
|
1" |
|
- |
|
|
|
|
|
|
|
| 8MR191E-1-28 |
|
imperial |
|
1" |
|
28 (0.67A, 200 steps) |
|
|
|
|
|
|
|
| 8MR191E-1-4233 |
|
imperial |
|
1" |
|
4233 (0.4A, 200 steps) |
|
|
|
|
|
|
|
| 8MR191E-1-4247 |
|
imperial |
|
1" |
|
4247 (1.2A, 200 steps) |
|
|
|
|
|
|
|
| 8MR191E-1-SM |
|
imperial |
|
1" |
|
All-in one Smart Motor system |
|
|
|
|
|
|
|
| 8MR191E-1-ZSS43 |
|
imperial |
|
1" |
|
ZSS43 (1.2 A, 200 steps) |
|
|
|
|
|
|
|
| 8MR190EV-1-VSS42 |
|
imperial /
vacuum |
|
1" |
|
VSS42 |
|
|
|
|
|
|
|
| 8MR191E-30 |
|
imperial |
|
30 mm |
|
- |
|
|
|
|
|
|
|
| 8MR191E-30-28 |
|
imperial |
|
30 mm |
|
28 (0.67A, 200 steps) |
|
|
|
|
|
|
|
| 8MR191E-30-4233 |
|
imperial |
|
30 mm |
|
4233 (0.4A, 200 steps) |
|
|
|
|
|
|
|
| 8MR191E-30-4247 |
|
imperial |
|
30 mm |
|
4247 |
|
|
|
|
|
|
|
| 8MR191E-30-SM |
|
imperial |
|
30 mm |
|
All-in one Smart Motor system |
|
|
|
|
|
|
|
| 8MR191E-30-ZSS43 |
|
imperial |
|
30 mm |
|
ZSS43 (1.2 A, 200 steps) |
|
|
|
|
|
|
|
| 8MR190EV-30-VSS42 |
|
imperial /
vacuum |
|
30 mm |
|
VSS42 |
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
 |
|
|
 |
|
|
|
|
