| Specifications |
 |
| Belt drive | | 1:10
|
|
|
|
| Clear aperture | | 152,4 mm (6")
|
|
|
|
| Rotation range | | 360° continuous
|
|
|
|
| Resolution | |
|
|
|
|
| in full step | | 10,8’
|
|
|
|
| in 1/8 step | | 81”
|
|
|
|
| Repeatability | |
|
|
|
|
| uni-directional | | 6'
|
|
|
|
| bi- directional | | 15'
|
|
|
|
| Accuracy | | 15’
|
|
|
|
| Maximum speed | | 120 turn/min
|
|
|
|
| Load capacity | |
|
|
|
|
| axial | | 100 kg
|
|
|
|
| radial | | 40 kg
|
|
|
|
| bending moment | | 60 Nm
|
|
|
|
| Limit switch (home) | | optoelectronic
|
|
|
|
| Motor connector | | DB9(M)
|
|
|
|
| Stepper motor | | 5918
|
|
|
|
Recommended
controllers | |
8SMC5-USB
|
|
|
|
| Weight | | 5,1 kg
|
|
|
|
Optocoupler home
reference switch | |
1
|
|
|
|
| Switch polarity | | pushed is closed |
|
|
|
|
|
|
|
Product added to the Wishlist
| Ordering Information |
|
| Model |
|
 |
|
Description |
|
|
|
|
|
|
|
|
| 8MRB240-152-59 |
|
|
|

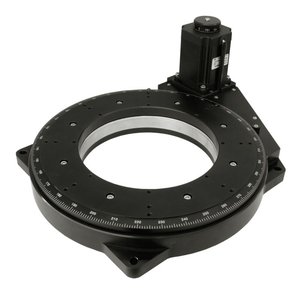

Motorized Rotation Stage
(stepper motor on top) |
|
|
|
|
|
|
|
| 8MRB240-152-59-MEn2 |
|
|
|
Motorized Rotation Stage
with Encoder
(stepper motor on top) |
|
|
|
|
|
|
|
| 8MRB240-152-59D |
|
|
|
Motorized Rotation Stage
(stepper motor from the bottom) |
|
|
|
|
|
|
|
| 8MRB240-152-59D-MEn2 |
|
|
|
Motorized Rotation Stage
with Encoder
(stepper motor from the bottom) |
|
|
|
|
|
|
|
|
|
