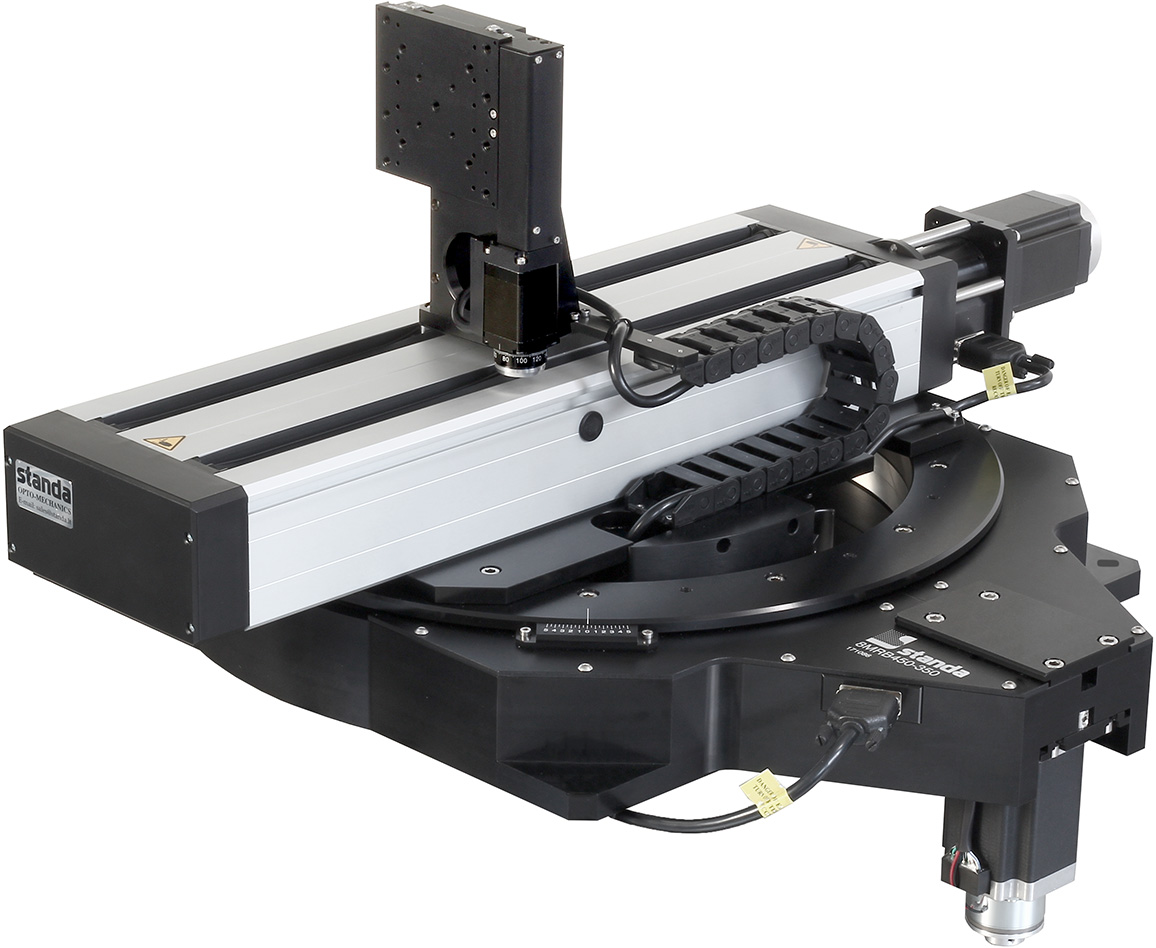

8-0169 - Rotating Multi-Axis Precision Positioning System New!
Rotating Multi-Axis Precision Positioning System
Zoom in
Printable version
View drawings
Rotary Drug Chain equipped
Originally 8-0169 is a 3-axis precision positioner
Could be easily modified into: 4-, 5-, 6-axis system
by adding appropriate positioners from STANDA catalog



Consists of:

- High Load Rotary Table (8MRB450-350 series) with rotary drag chain and brake equipped stepper motor.

- Long-Travel Linear Stage 8MT295 series (340 mm stroke).

- Low-Profile Compact Linear Stage 8MT167 series (25 mm stroke)

- Additional connecting plate, angle bracket and linear stage drag chain.



Ordering Information
Model
8-0169





Standa is able to produce any custom opto-mechanical device. Contact us with your needs.
