8-0063 - Motorized XYZ Stage + Rotation Table (Positioning System)


		Zoom in

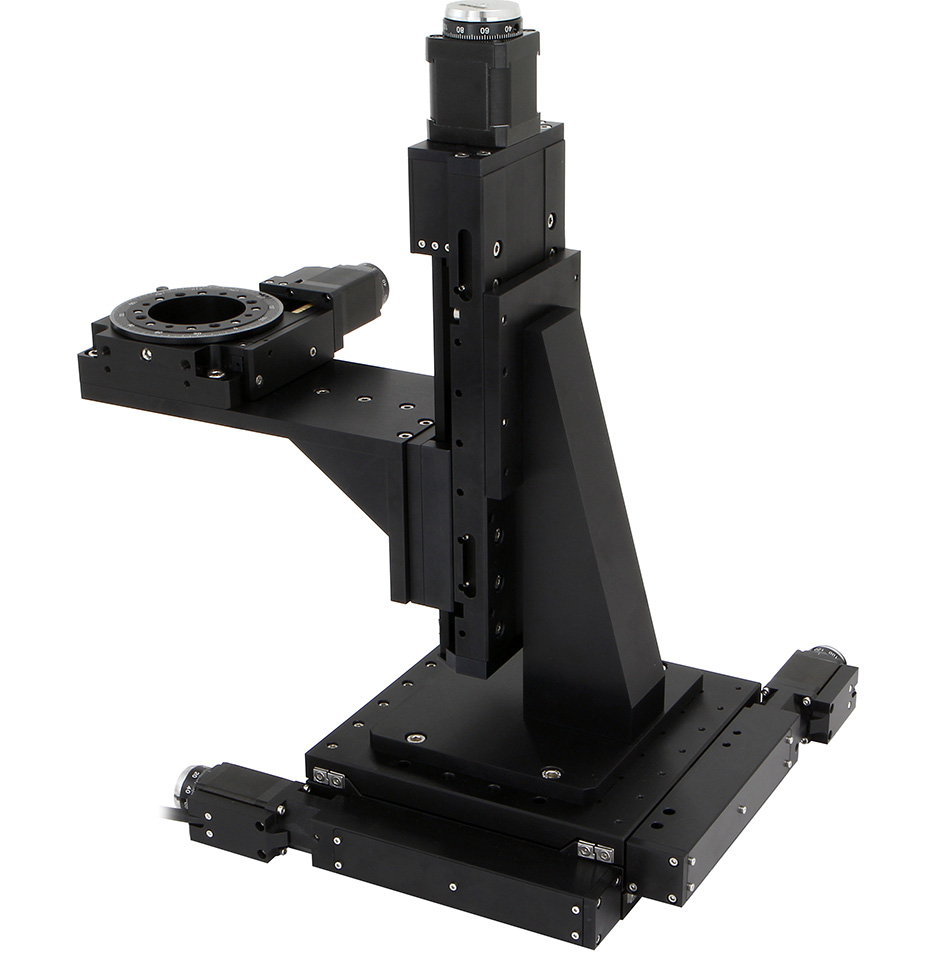

		8-0063 - 4-axis Positioning System
		XY 102x102 mm linear translation accomplished by 8MTF-102LS05
		Z-axis 100 mm vertical translation implemented by 8MT200-100
		360° Rotation fulfilled by 2 Inch Aperture Rotary Stage 8MR190-2-28
		Two Angle Brackets: - 2AB200-002 - for Z-axis (stacking 8MTF-102LS05 to 8MT200-100) - 2AB200-8MR190 - for axis of rotation (stacking 8MR190-2-28 to 8MT200-100)
		Maximum load capacity - 3 kg (more by request)
		System weight - 9.1 kg

Ordering Information

Model

8-0063



Standa is able to produce any custom opto-mechanical device. Contact us with your needs.
