8-0050, 8-0030, 8-0026 - Multi-Axis Positioning System
Multi-Axis Positioning System
Zoom in
Printable version
View drawings

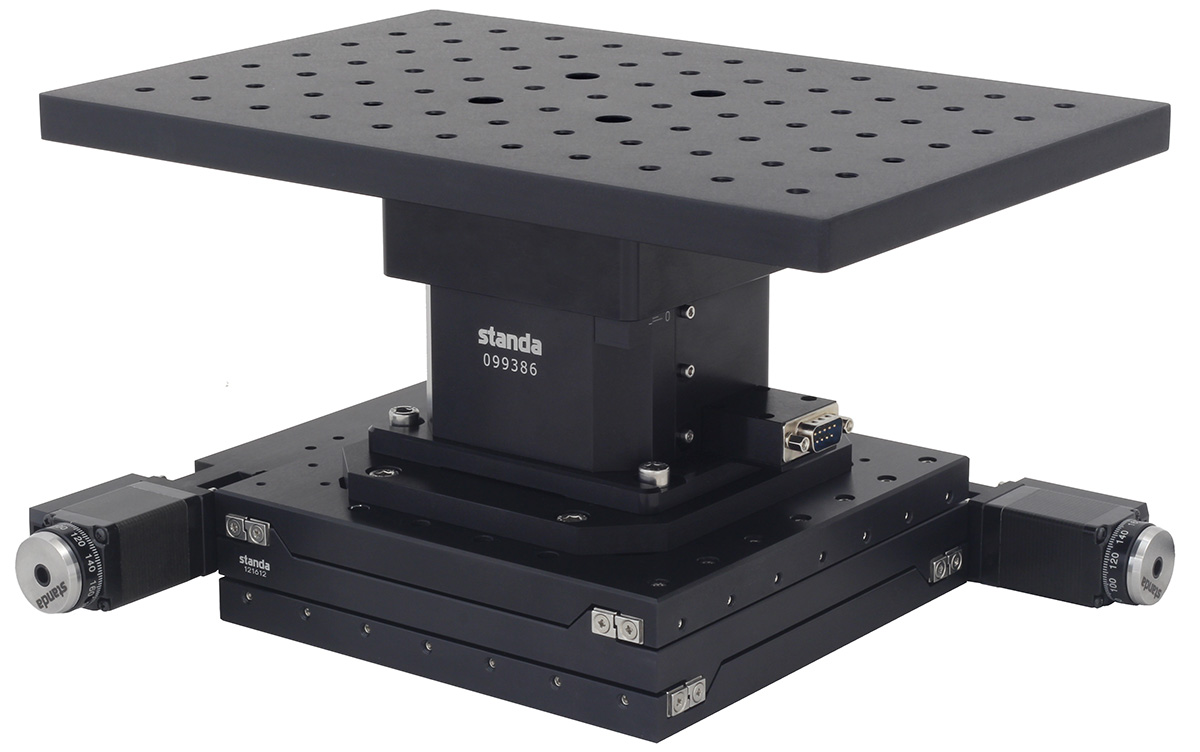

8-0050 - 3-axis Positioning Table

XY translation 102x102 mm accomplished by 8MTF-102LS05

Z translation 25 + 1 mm implemented by 8MVT100-25-1

Moving platform dimensions 300x200 mm

Maximum load capacity - 5 kg



8-0030 - 4-Axis System for Micromachining
4-Axis Motorized Positioning System - 8-0030
View bigger
View drawings
XY translation 75x75 mm 8MTF-75LS1-En1
Z translation 5 mm 8MVT120-5-4247
Y rotation 360° continuous 8MR190-2-28
Maximum load capacity 7 kg
Encoder resolution 1000 CPR

8-0026 - XYZ Motorized system

View bigger

View bigger
View drawings
XY translation 75x75 mm 8MTF-75LS05
Z translation 25 + 1 mm 8MVT100-25-1
Maximum load capacity 5 kg


Ordering Information
Model
8-0026 3-axis Positioning System (75x75x25 mm travel range)
8-0030 4-axis Positioning System (75x75x5 mm travel range)
with 360° continuous rotation
8-0050 3-axis Positioning System (102x102x25 mm travel range)





Standa is able to produce any custom opto-mechanical device. Contact us with your needs.
