| Specifications |
 |
| Travel range | | 5 mm
|
|
|
|
| Resolution in full step | | 0,625 μm
|
|
|
|
| in 1/8 step | | 0.078 μm
|
|
|
|
| Lead screw pitch | | 0,5 mm
|
|
|
|
| Wedge reduction rate | | 4:1
|
|
|
|
| Repeatability | | 3 μm
|
|
|
|
| Accuracy | | 10 μm
|
|
|
|
| Lift parallelism (to the base) | | 20 μm
|
|
|
|
| Mounting surface flatness | | 10 μm
|
|
|
|
| Position stability (max) | | 3 μm
|
|
|
|
| Maximum speed | | 2.5 mm/s
|
|
|
|
| Maximum load capacity | | 8 kg
|
|
|
|
| Motor connector | | DB9(M)
|
|
|
|
| Stepper motor | | 4247
|
|
|
|
| Recommended controllers | | 8SMC5-USB
|
|
|
|
| Optocoupler end limit switches | | 2
|
|
|
|
| Switch polarity | | pushed is open |
|
|
|
|
|
|
|
Product added to the Wishlist
| Ordering Information |
|
| Model |
|
|
|
|
|
|
|
|
|
|

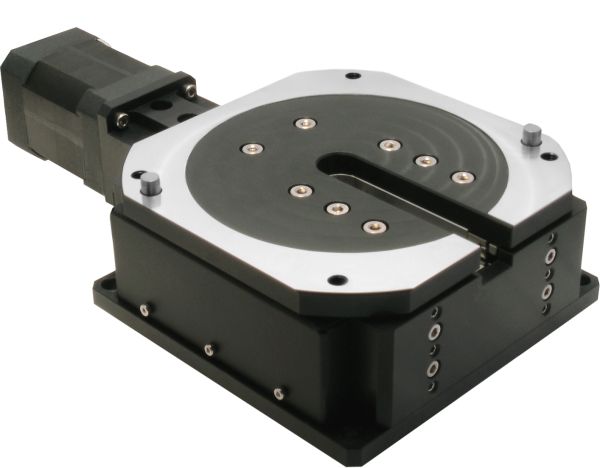

| 8MVT120-5-4247 |
|
|
|
|
|
|
|
|
|
|
|
