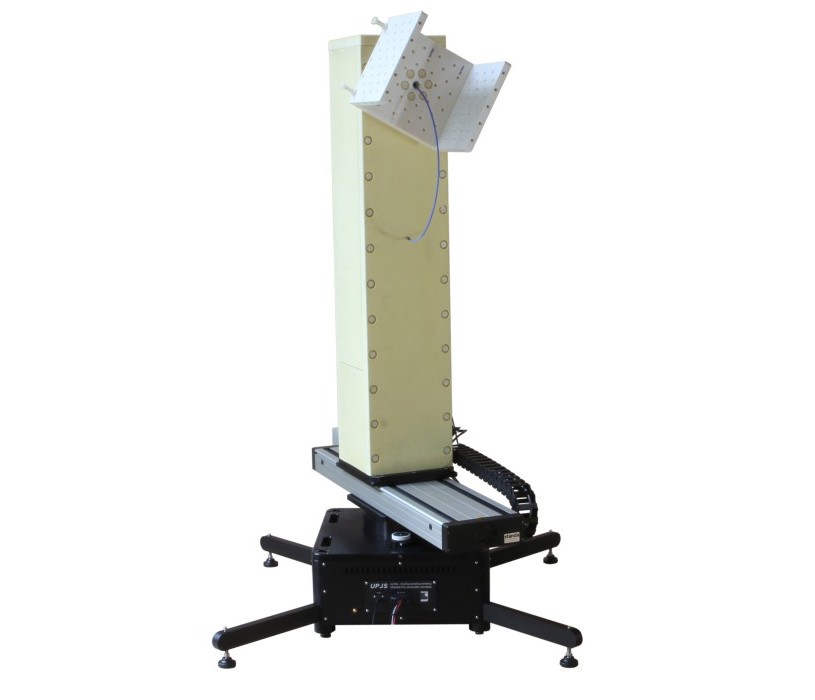

UPJS - 3D Antenna Patterns Measuring System |
|
 |
|
|
|
|
 |
|
Applications:
1. Antenna measuring;
1.1 Far field: 3D Antenna Patterns measuring
1.2 Near field: Spherical antenna measuring
2. 3D RCS measuring and ISAR imaging |
| |
|
| Specifications |
|
| Permittivity ratio E | | ≤ 1.4
|
|
|
|
| Ѳ X
|
|
|
|
| Rotation | | ±90°
|
|
|
|
| Reduction ratio | | 1:540
|
|
|
|
| Resolution in full step | | 12"
|
|
|
|
| Steps per revolution | | 200
|
|
|
|
| Max rotation speed | | 2.2 rpm
|
|
|
|
| Load capacity | | 5 kg
|
|
|
|
| Ѳ Z
|
|
|
|
| Rotation | | 360° continuous
|
|
|
|
| Reduction ratio | | 1:540
|
|
|
|
| Resolution in full step | | 12"
|
|
|
|
| Steps per revolution | | 200
|
|
|
|
| Max rotation speed | | 2.2 rpm
|
|
|
|
| Load capacity | | 1000 kg
|
|
|
|
| Y
|
|
|
|
| Travel range | | 700 mm
|
|
|
|
| Lead screw pitch | | 2.5 mm
|
|
|
|
| Resolution in full step | | 12.5 µm
|
|
|
|
| Max speed | | 12.5 mm/sec |
|
|
|
|
|
|
|
|
|
|
 |
|
|
 |
|
|
|
|
