4OCM - Optical Mounts
Optical Mounts
Printable version
View drawings
Download 3D

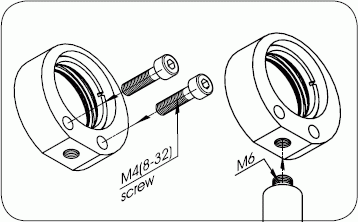

Optical Component Mounts 4OCM can be used to hold round thin optical elements of standard sizes. Mounts vary in dimensions so as to support diameters from 10 to 50mm (0.5" to 2"). Original design allows to decrease the mount's dimensions and weight. Mounting holes: one M6 and two Ø4.5 mm. Material: black anodized aluminum.

Optical mounts 4OCM series



Ordering Information
Model Optics
Diameter
Weight Price Availability
4OCM-10 10 mm 0.01 € 19.00 today
4OCM-20 20 mm 0.02 € 23.00 today
4OCM-25 25 mm / 1" 0.02 € 24.00 today
4OCM-40 40 mm 0.04 € 29.00 today
4OCM-50 50 mm / 2" 0.05 € 39.00 today
4OCM-75 75 mm 0.06 € 49.00 today
4OCM-3 3" 0.06 € 49.00 today
4OCMV-75 0.06 request
