3AH - Thread Adapters
Thread Adapters
Zoom in
Printable version
View drawings
Download 3D
Thread Adapters
Ultra-fine thread adjustment screws...

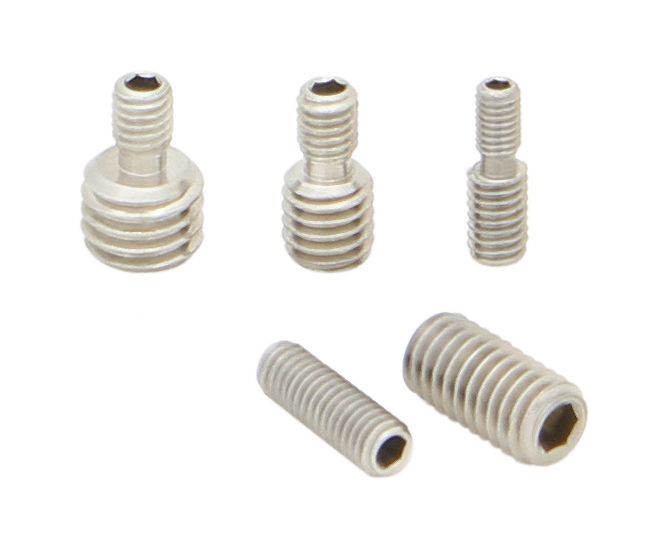

Thread Adapters 3AH connect components when precise orientation in plane is not required. 1 For example, they are used on 3MP posts as replaceable threaded tips, or for attachment of post holders to optical tables. Some adapters have different threads on ends. So, you can connect components together and to optical tables with M3, M4, M6, M8 threaded holes. Material: stainless steel.
*Metric/imperial thread adapters are available on request.



Ordering Information
Model | A | B | C | D | Price | Availability
3AH4-3 M4 M3 2 1.5 € 2.50 today
3AH6-3 M6 M3 3 1.5 € 2.50 today
3AH6-4 M6 M4 3 2 € 1.70 today
3AH8-4 M8 M4 4 2 € 2.50 today
3AH8-6 M8 M6 4 3 € 2.50 today
3AH4-8-32 M4 8-32 2 2 € 1.70 today
3AH6-8-32 M6 8-32 3 2 € 2.50 today
3AH4-1/4-20 M4 1/4-20 2 3 € 1.70 today
3AH6-1/4-20 M6 1/4-20 3 3 € 2.50 today
3AH4-4 M4 - - 2 € 1.70 today
3AH6-6 M6 - - 3 € 1.70 today
3AH8-32 8-32 - - 2 € 1.70 today
3AH1/4-20 1/4-20 - - 3 € 1.70 today
