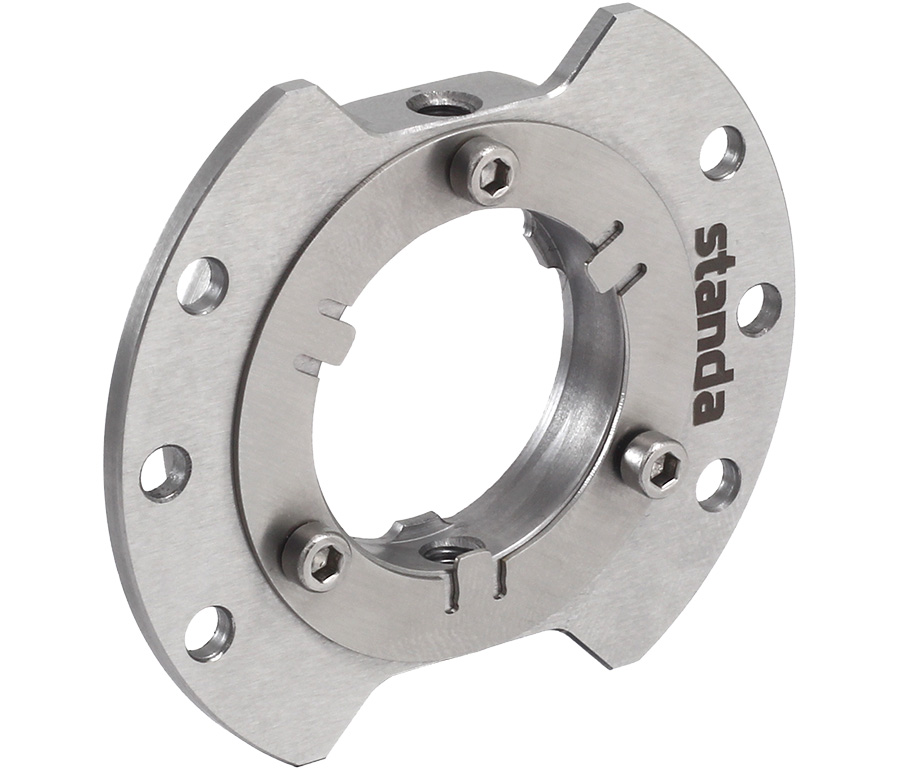

4AFS - Fixed Optical Mirror Mounts (Stainless Steel): "Butterfly"
Fixed Optical Mirror Mounts (Stainless Steel):
Zoom in
Printable version
View drawings
"Butterfly" series optical mounts
Made of heat-treated stainless steel
Minimize wavefront distortion
Includes special frontal spring retainer
Default fixation screw also included
Vacuum compatibility option available
Mounts for other optical components diameters by request
Compatible with adjustable flexure mirror mounts 5UFOM-40




Ordering Information
Model Price Availability
4AFS-1 Fixed optical mount
for Ø 1" (25.4 mm) optics		 request today
4AFS-20 Fixed optical mount
for Ø 20 mm optics		 request today
4AFS-X.X Custom adapter for
other required optics thiknesses		 request 2 weeks
4AFS-XX Custom mount for required
diameter & thikness components		 request 2 weeks




As an example "Butterfly" optical mounts are also used as an exchangeable optic adapters in Standa adjustable flexure mirror mounts. It is vividly demonstrated in the short video below.
