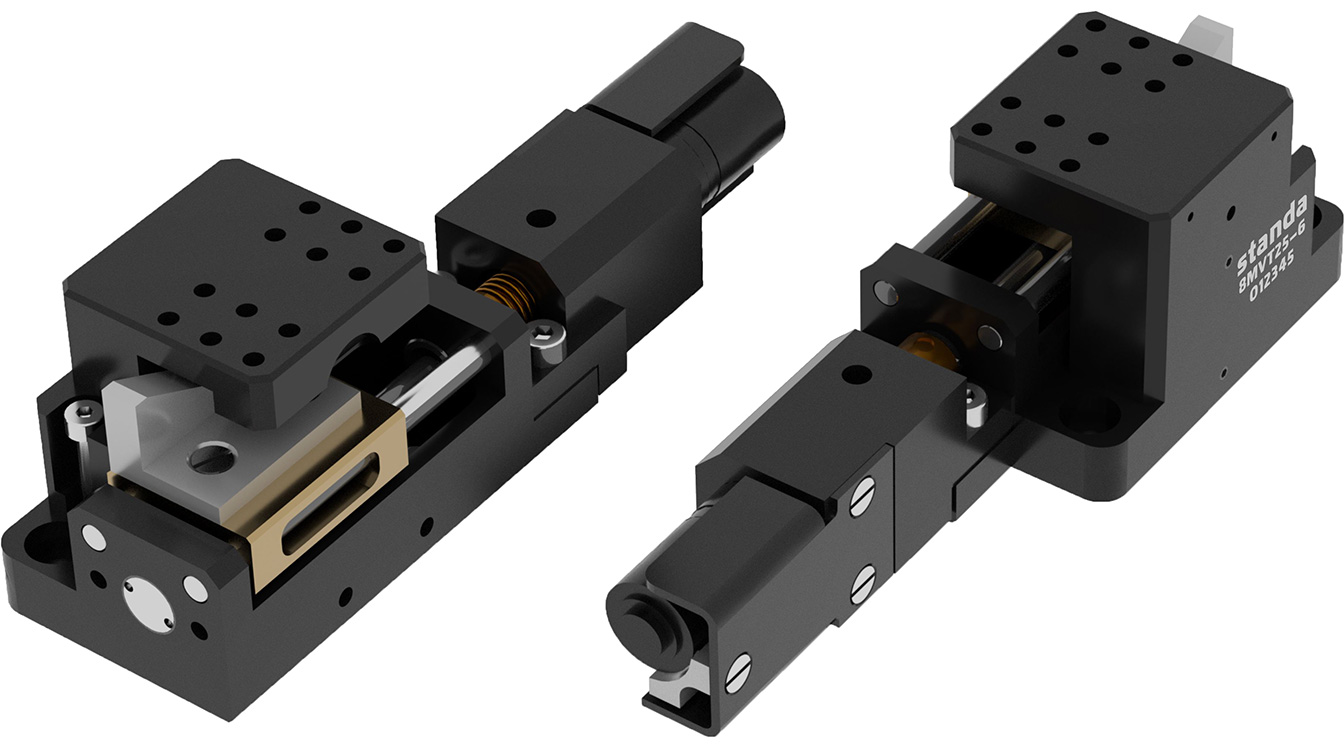

8MVT25-6 - Miniature Vertical Motorized Translation Stage New! |
|
 |
|
|
|
|
 |
|
6 mm travel range (vertical)
|
|
|
0.5 mm/s max. speed
|
|
|
1/8 µm achievable resolution
|
|
|
0.5 kg load capacity
|
|
|
25x25 mm moving platform
|
|
|
Compact and lightweight |
| |
|
| |
|
Specifications
| Model |
8MVT25-6 |
| Kinematics & Feedback information |
| Travel Range, mm |
6 (1/4") |
| Resolution in Full Step, µm |
1 |
| Resolution in 1/8 Step, µm |
0.125 |
| Maximal Speed, mm/s |
0.5 |
| Limits Switches |
Mechanical
(2 pcs on borders) |
| Switch Polarity |
Pushed is Closed |
| Load & Transmission Information |
| Lead Screw Pitch, mm |
0.35 |
| Load Capacity (Centrally Placed) |
| Horizontal, kg |
0.5 |
| Vertical, kg |
- |
| Stepper Motor |
F10 |
| Gearbox |
16/1 |
| Wedge reduction rate |
2:1 |
| Material & Environment Conditions |
| Housing Material |
Aluminum |
| Housing Coating (Finish) |
Black Anodizing |
| Environment Pressure |
Normal Atmosphere
(10-3 Torr on request) |
| Housing Material |
Aluminum |
| Control, Communication and Cabling |
| Recommended Controllers |
8SMC5-USB series |
| Recommended Power Supply |
PS12-3-4 |
| Cable Length, m |
1.6 (other by request) |
| Connector |
HDB15(M) |
| Accessories |
| Base plate |
3BP8MT18E |
| XY Configuration |
- |
| Z Configuration |
- |
| Additional Details |
| Dimensions of Moving Platform, mm |
25x25 mm |
| Measurement System |
Metric |
| RoHS |
Compliant |
| Weight, kg |
0.15 |
|
|
| |
|
|
 |
|
|
 |
|
|
|
|
Miniature Vertical Motorized Translation Stage
