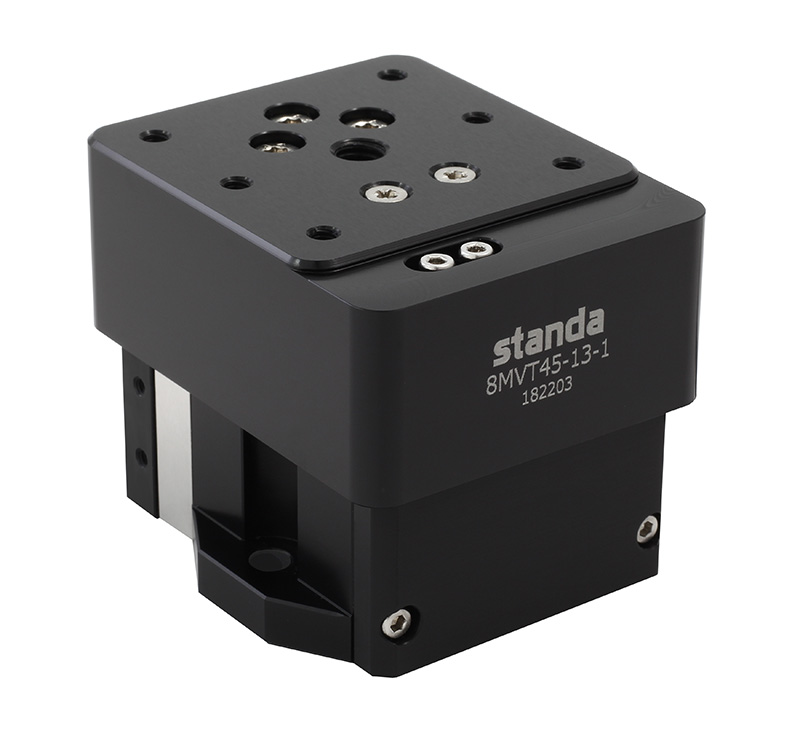

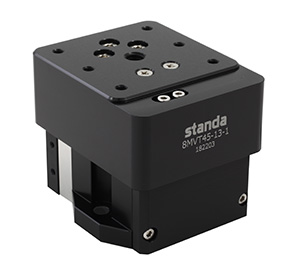

8MVT45-13 - Vertical Precision Motorized Stage: "Compact Z-Axis Positioner" New!
Vertical Precision Motorized Stage:
Zoom in
Printable version
View drawings
Download 3D
13 mm travel range
3.5 kg load capacity
40 x 50 mm footprint
10 mm/s maximum speed
Stepper motor driven
3 µm bi-directional repeatability
Direct stacking with linear and rotation stages



Motorized Vertical Translation Stages: 8MVT45-13-1, 8MVT70-13-1, 8MVT100-25-1

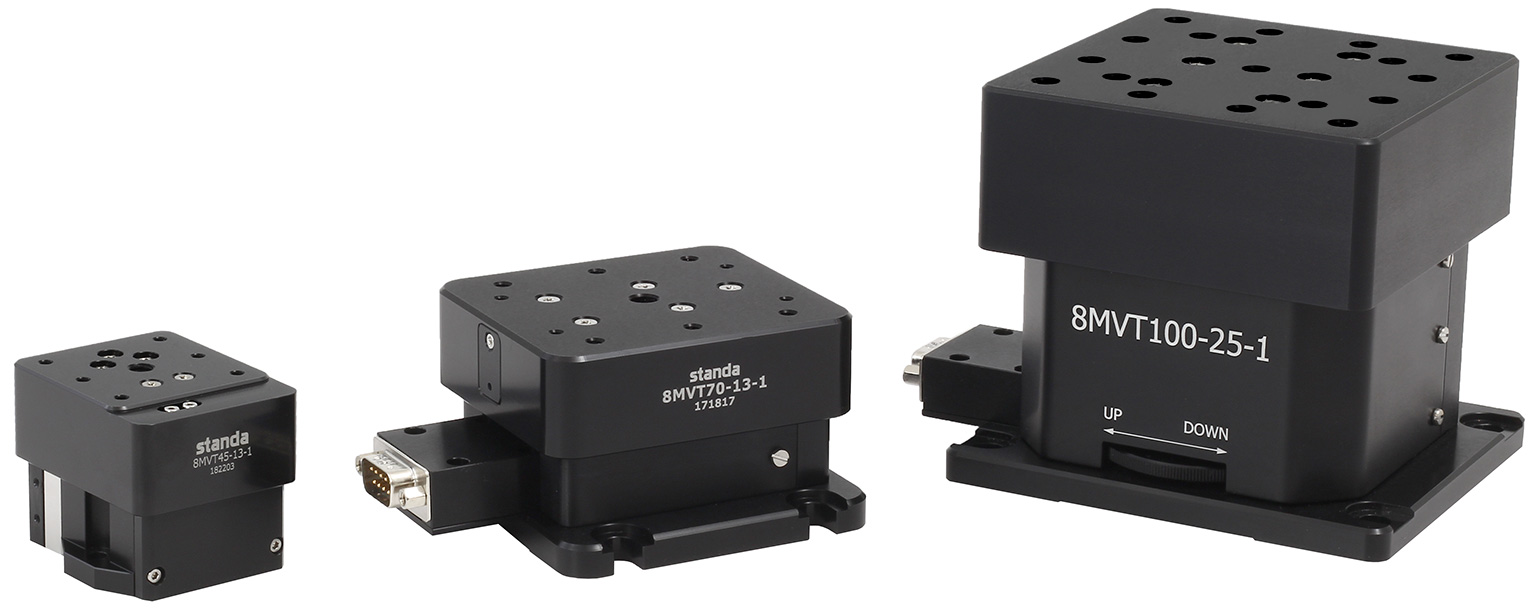

Real scale size comparison of vertical motorized translation stages with similar design produced by STANDA:
8MVT45-13-1, 8MVT70-13-1, 8MVT100-25-1.



Specifications
Travel range13 mm
Resolution in full step5 µm
Resolution in 1/8 step0.625 µm
Bidirectional repeatability3 µm
Unidirectional repeatability1.5 µm
Parallelism to stage base (max)50 µm
Lift parallelism (max)15 µm
Absolute accuracy10 µm
Pitchrequest
Yawrequest
Backlashrequest
Maximal speed10 mm/s
Limit switches2 Optocoupler
Switch polarityPushed is closed
Lead screw pitch1 mm
Load capacity3.5 kg
Stepper Motor20 SA
Recommended controllers8SMC5-USB
Recommended power supplyPS24-2.5-4
ConnectorHDB15(M)
Cable length1.6 m
Base materialAluminum
FinishBlack anodized
Ambient temperature+5°…+50°C
Base plateOn request
Moving platform dimensions45x56 mm
Measurement systemMetric
Weight0.35 kg
Ordering Information
Model
8MVT45-13-1
