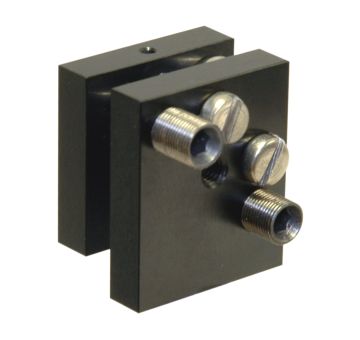

5CM123 - Compact Mirror Mount
Compact Mirror Mount
Zoom in
Printable version
View drawings
Download 3D
High degree of versatility

Miniature mount for small optics

Is made of black anodized aluminium

±10° tilt adjustments about two orthogonal axes



Extremely small mirror mount has small driving screws with a hexagonal head or a hexagonal keyhole. Miniature Precision Mirror Mount ensures precise angular adjustments of small optics about two orthogonal axes with 10 arcsec sensitivity. Mirror Mount is provided with M4 and M6 taped holes for mounting. These black anodized aluminium mirror mount is ideal for holding of 25 mm and smaller optic in tight spaces.

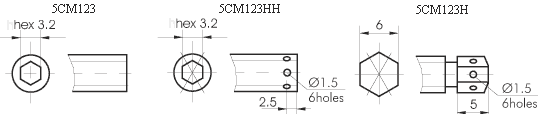

A suffix to the unit code specifies driving screws of desired type or drive:


Related products

HR Laser Line mirrors HR Broad Band mirrors Metallic Coated Optics


Specifications
Fine screw threadM6x0.5
Ordering Information
Model Weight, kg Option Price Availability
5CM123 0.04 hexagonal keyhole € 38.00 today
5CM123H 0.04 hexagonal head and six holes for a wrench € 42.00 today
5CM123HH 0.04 hexagonal keyhole and six holes for a wrench € 40.00 today
