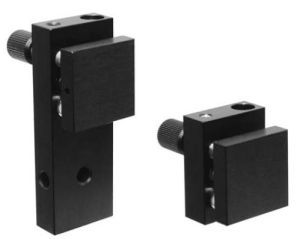

5LSM110 - Mirror Mounts with Locking Screws


		Zoom in

		Printable version

		View drawings

		Download 3D


		High degree of versatility
		Miniature mounts for small optics
		Is made of black anodized aluminium
		±10° tilt adjustments about two orthogonal axes

5LSM110-01

5LSM110-02

Mirror Mounts with locking screws 5LSM110 are provided with extended back for convenient mounting in horizontal or vertical position. Teflon fixture or driving screws ensures stability during exploitation. Miniature Precision Mirror Mounts ensure precise angular adjustments of small optics about two orthogonal axes with 10 arcsec sensitivity. Mirror Mounts are provided with M4 and M6 taped holes for mounting. These black anodized aluminium mirror mounts are ideal for holding of 25 mm and smaller optic in tight spaces.

Lock Screws Mirror Mount 5LSM110 are provided with extended back for convenient mounting in horizontal or vertical position. Teflon fixture of driving screws ensures stability during exploitation.
