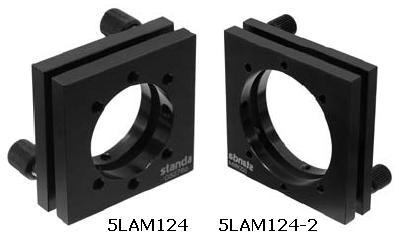

The Large Aperture Optical Mount 5LAM124 on its platform has Ø31.8 mm aperture and six M4 mounting holes. It is designed for precise orthogonal adjustment of mirrors. The Large Aperture Optical Mount 5LAM124-2 on its platform has Ø50 mm aperture and six M4 mounting holes. It is designed for precise kinematics orthogonal adjustment of mirrors.
Precision Kinematic Optical Mounts are ideally suitable for precise aligning of various optical elements to desired angular orientation. The tilting element is always true-kinematic-registered. The drive screw pushes the alignment mechanism via hardened steel balls. These mounts provide angular range 9° in both orthogonal axes. The Precision Kinematic Optical Mounts are produced of aluminium and can be anodized in the color according to your request. Without special note from you will be provided with the black anodized Precision Kinematic Optical Mounts.
Models 5LAM124 and 5LAM124L are currently on sale. 5LAM124L is equiped with adjustement screws with locking
|
