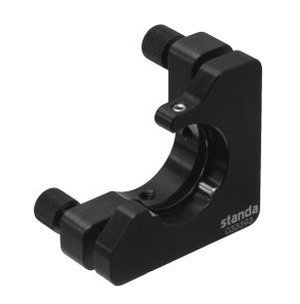

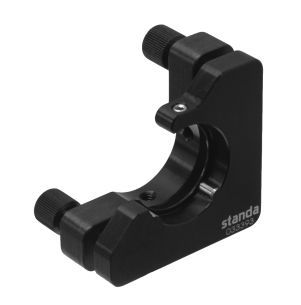

5BM141 - Mirror Optical Mount
Mirror Optical Mount
Zoom in
Printable version
View drawings
For Ø25.4 mm (1 inch) optics
Hard rests make 2 contact points for optimum stability
On one side the edge of the optics stays clear, helpful in schemes where beams are situated very close to one another
M6x0.25 adjustment screws provide precise kinematic control
Weight 0.08 kg



Precision Kinematic Optical Mounts are ideally suitable for precise aligning of various optical elements to desired angular orientation. The tilting element is always true-kinematic-registered. The drive screw pushes the alignment mechanism via hardened steel balls. These mounts provide angular range 9° in both orthogonal axes. The Precision Kinematic Optical Mounts are produced of aluminium and can be anodized in the color according to your request. Without special note from you will be provided with the black anodized precision kinematic optical mounts. There are two mounting holes for M4(8-32) screws.


Related products

Off-Axis Parabolic Mirrors Dielectric Coated Optics Metallic Coated Optics


Ordering Information
Model Fine screws Mirror version
of the mount
Optics Price Availability
5BM141E-1-2 2 - - € 55.00 today
5BM141E-1-3 3 - - € 65.00 today
5BM141EM-1-2 2 yes - € 55.00 today
5BM141EM-1-3 3 yes - € 65.00 today
5BM141EGM-1-2 2 - protected gold coated mirror € 103.00
5BM141EGM-1-3 3 - protected gold coated mirror € 114.00
5BM141EMGM-1-2 2 yes protected gold coated mirror € 103.00
5BM141EMGM-1-3 3 yes protected gold coated mirror € 114.00
5BM141EMSM-1-2 2 yes protected silver coated mirror € 97.00
5BM141EMSM-1-3 3 yes protected silver coated mirror € 107.00
5BM141ESM-1-2 2 - protected silver coated mirror € 97.00
5BM141ESM-1-3 3 - protected silver coated mirror € 107.00
