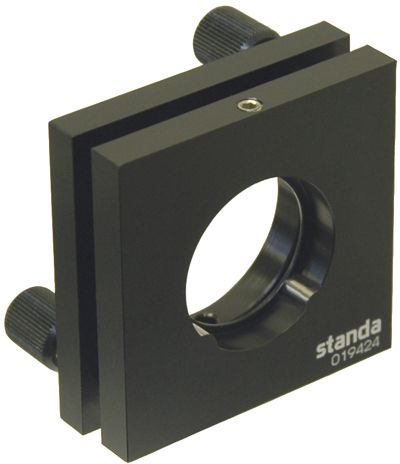

The Beamsplitters/Optics Mount 5BM121 is designed for beamsplitters of Ø25.4 mm (1 inch). Fixing screw with a plastic tip clutches a beamsplitter against 2 contact lines. The mounting opening has a rest-flange designed to stop optics inside. Clear aperture is Ø24 mm.
Precision Kinematic Optical Mounts are ideally suitable for precise aligning of various optical elements to desired angular orientation. The tilting element is always true-kinematic-registered. The drive screw pushes the alignment mechanism via hardened steel balls. These mounts provide angular range 9° in both orthogonal axes. The Precision Kinematic Optical Mounts are produced of aluminium and can be anodized in the color according to your request. Without special note from you will be provided with the black anodized Precision Kinematic Optical Mounts.
|
