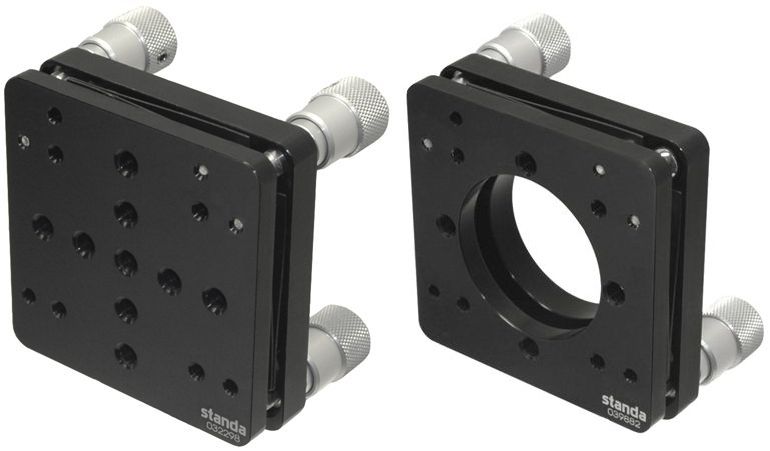

Precision and High Stability Optics Mounts 5OM60 and 5OM61 are universal, durable, and render very stable adjustment. Independent tilt, about two horizontal axes - 6° with 3 arcsec sensitivity. Linear translation - 5 mm, sensitivity - 1 µm. For translation a third actuator replaces re removable socket and the pivot bearing. To enchase stability: the platform is preloaded by three special spring blocks; actuators push against hardened steel seats. The mounts have M6 mounting holes. Mount 5OM61 also has a Ø42 mm clear aperture. Mounts can be fastened on any mounting post on its M6 tip. Additionally, mount 5OM60 has a hole on its back and can be mounted in horizontal position to be used as a tilt platform. The base of the stage has three holes M10x1 for driving screws of your choice. Standard screws have pitch of 0.5 mm. For greater sensitivity you may request actuators with 0.35 or 0.25 pitch. We modify our standard articles according to your request even for one piece order:
5OM60-SQ2
5OM61-RN2
With square type frame of 50.8 mm (2 inches)
With ring type frame of 50.8 mm (2 inches)
5OM60-3 and 5OM61-2

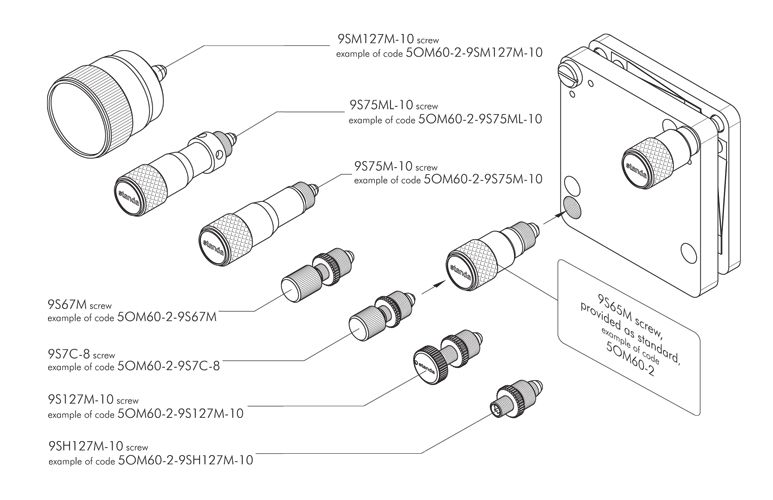

The stage may be fitted with 2 or 3 screws. A variant with 2 driving screws has a ball Ø8 as a third base-point. The stage comes with 9S65M (see its specifications here...) screw as standard. You don't have to specify this screw in your order. If you order the stage with alternative screws, please specify this in order, by appending the screw code name to the stage code.
