4LM149 - Universal Adjustable Lens / Optics Mounts
Universal Adjustable Lens / Optics Mounts
Zoom in
Printable version
View drawings
Download 3D
Hold cylindrical objects of various diameters

2 models available with different holding diameters variability:
Ø10-66 mm and Ø38-103 mm

Quick coarse positioning and diameter setting possibility

Convenient holding of tips not used at the moment

Mounting holes versatility: M4, M6, Ø6.4 mm

Made of black anodized aluminum



Universal Adjustable Lens / Optics Mounts 4LM149-10 and 4LM149-05 are used to accommodate any round objects of any thickness like lenses, mirrors and lasers. Three support shafts of holder are assembled with non-rotating V-groove aluminium universal interchangeable tips for lenses mirrors, etc. While not in use the new non-abrasive flat Teflon face aluminium tips for lasers are kept in special holes on aluminium support ring. Long objects like cylindrical laser heads can be held by two mounts together with Multiple Mounting Plates 2MP. Each individual adjustable shaft of holder incorporates threaded thumbscrew, sliding sleeve and fixation tool for rough positioning and diameter setting. It is enough to give only a twist thumbscrew of the shaft to provide a fine adjustment travel. Three various mounting holes M4, M6, and Ø6.4, Ø11x4 provides various and easy attachment possibilities to the optical tables, breadboards and the STANDA rod holder system.

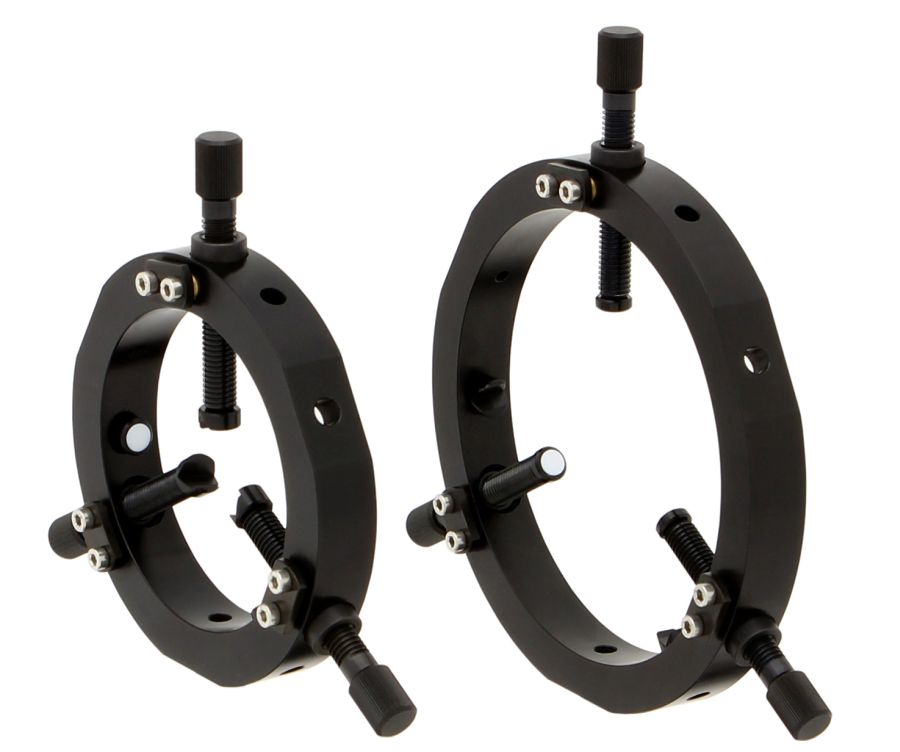

Universal adjustable lens / optics mount 4LM149


Ordering Information
Model For
Objects Ø,
mm
Weight,
kg
Price Availability
4LM149-05 10-66 0.25 € 119.00 today
4LM149-10 38-103 0.3 € 174.00 today
