3EXP59 - Base Plates with Eccentric Clamp
Base Plates with Eccentric Clamp
Printable version
View drawings

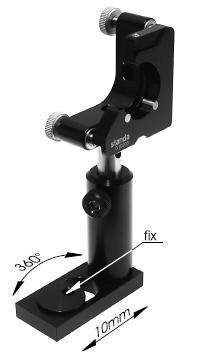

Base plate with eccentric clamp 3EXP593EXP59 are used to clamp posts and post holders in random positions. Attach a post to the base using an M6 screw. Set the position. The base rotates around the clamp through 360° and translates within 10 mm. Fix the clamp with an screw. The base is of black anodized aluminium.



Ordering Information
Model Weight, kg Price Availability
3EXP59-01 0.11 € 13.00 today
3EXP59-02 0.12 € 14.00 today
3EXP59-03 0.15 € 17.00 today
