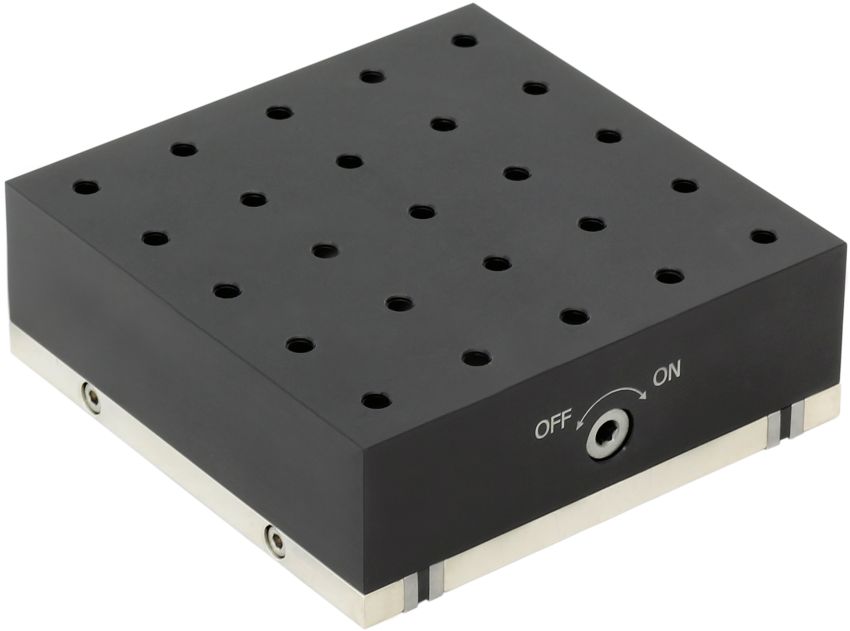

3MB6 - Low-profile Magnetic Base
Low-profile Magnetic Base
Zoom in
Printable version
View drawings
Download 3D
Magnetic Base
M6 mounting holes pattern on 25 mm centers

Highest holding force - up to 140 kg

Nonmagnetic mounting surface

Low field leakage.



Our Low-profile Magnetic Base 3MB6`s features: a high holding force that does not degrade with time, a low profile, generous mounting provisions, a non magnetic mounting surface of the magnetic base, a holding force which you may vary continuously by the easy to reach inset adjustment screw. An exclusive stable magnetic circuit ensures that the magnetic elements move linearly. A Hex Key 3HK-6 (6 mm) comes with each magnetic base.



Ordering Information
Model Weight,
kg
Price Availability
3MB6 2.8 € 349.00 request
