6MKB175 - Magnetic Kinematic Base
Magnetic Kinematic Base
Zoom in
Printable version
View drawings
Download 3D

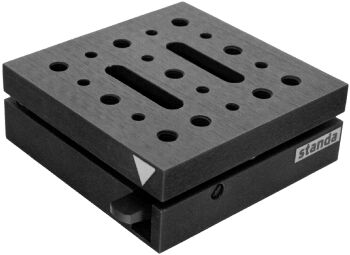

Magnetic Kinematic Base 6MKB175. You lift the units mounted on the platform as a group. The platform is replaced with a repeatability of 50 μm. The platform has patterns of M4 and M6 mounting holes. Alternatively, fit M6 screws through its clearance slots from beneath.

Two high strength
magnets lock the platform to
the bottom plate. The bottom
plate is fastened by M6 screws
through a pair of transversal clearance
slots. Push the special lever
to lift the platform with
minimal jolts.



Specifications
MaterialAluminium
FinishBlack Anodized
Ordering Information
Model Surface,
mm
Weight,
kg
Price Availability
6MKB175 75 x 75 0.36 € 87.00 today
