| Specifications |
 |
| Travel Range | | 50.8 mm (2")
|
|
|
|
| Lead Screw pitch | |
1 mm
|
|
|
|
Min. Incremental
Movement | |
<0.1 µm
|
|
|
|
| Max. Force | | 220 N
|
|
|
|
| Max. Velocity | | 20 mm/s
|
|
|
|
| Tip Shape | | sphere (R8)
(flat by request)
|
|
|
|
| Limit Switches | | 2 Hall Sensors
|
|
|
|
| Stepper Motor | | 4247
|
|
|
|
| Motor Connector | | DB9(M)
|
|
|
|

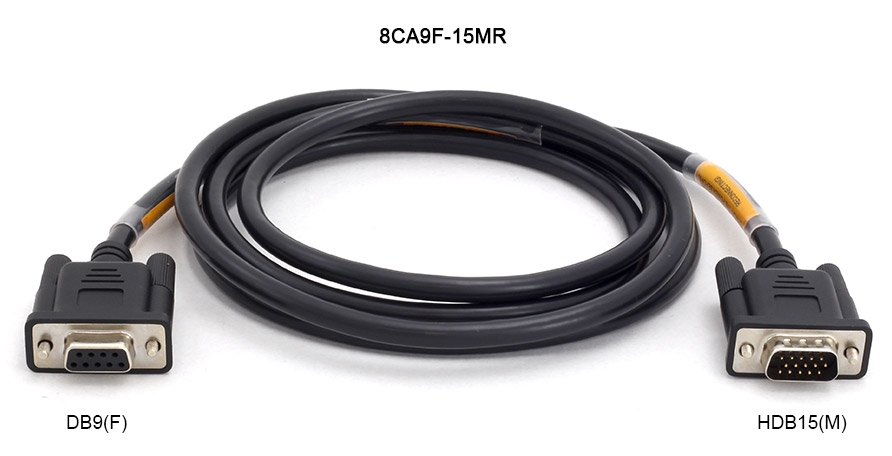

| Default Cable | | 8CA9F-15MR
|
|
|
|
| Length | | 1.8 m
|
|
|
|
Recommended
controller | |
8SMC5-USB
|
|
|
|
Recommended
Power Supply | |
PS36-4.4-4 (36V)
|
|
|
|
| Weight | | 1.3 kg |
|
|
|
|
|
|
|
Product added to the Wishlist
| Ordering Information |
|
| Model |
|
 |
|
Description |
|
Price |
|
Availability |
|
|
|
|
|
|
|
|

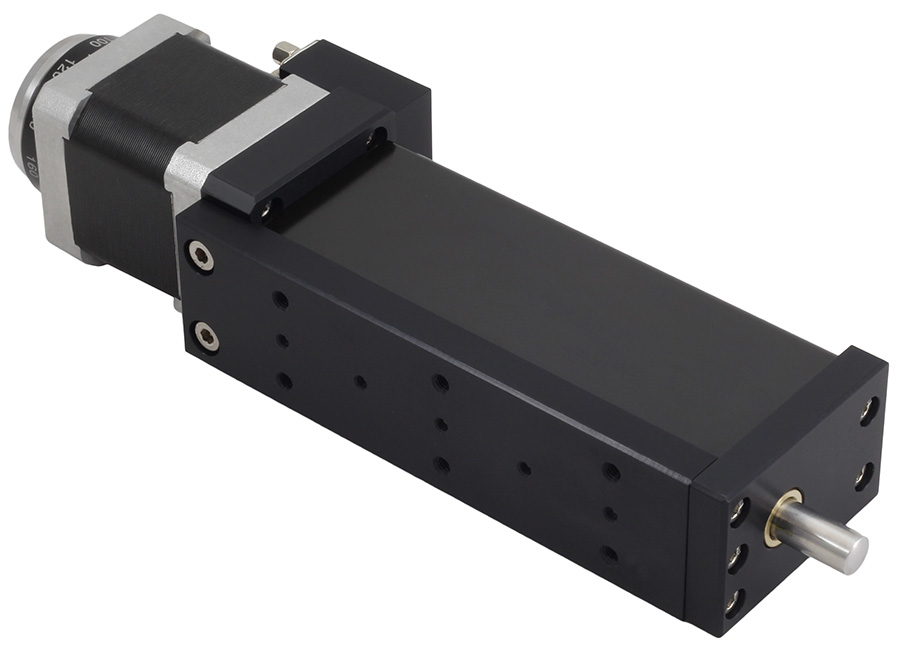

| 8CMA42-2-4247 |
|
 |
|
Motorized Linear Actuator |
|
request |
|
today |
|
|
|
|
|
|
|
| 8CMA42V-2-V423 |
|
|
|
Vacuum Compatible
Motorized Linear Actuator |
|
request |
|
request |
|
|
|
|
|
|
|
| 8CMA42-50-4149 |
|
|
|
Old linear actuator version (obsolete) |
|
- |
|
out of
production |
|
|
|
|
|
|
|
Precision actuators could be optionally equipped with encoders.
Linear actuators with DC or BLDC motors available on demand. |
|
