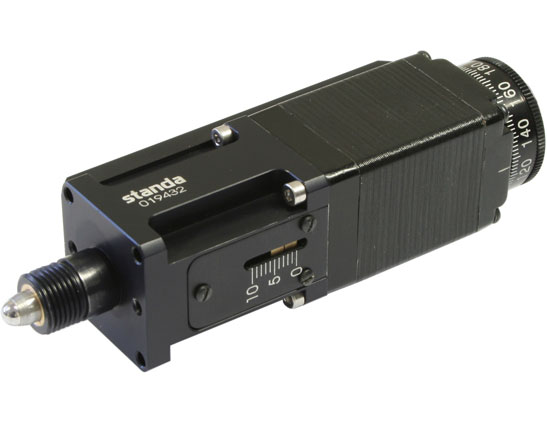

8CMA28 - Motorized Linear Actuator


		Zoom in

		Printable version

		View drawings

		Download 3D


		Motorized Linear Actuator
		Stepper Motor Drive
		High Sensitivity
		High Load
		Compact
		Optional power supplies for higher voltages/speeds are avalable
		Longer Travel Motorized Linear Actuators...
		Motorized Linear Actuators integrated in Fiber Launch Stage...
		Vacuum version available

Motorized linear actuators main advantages:

- Resolution 0.156µm (1/8 step)

- Manual drive with knob

- Two limit switches

8MTF2 8MBM57
View Motorized Fiber Coupling Stages 8MTF2. View Large Apreture Motorized Mirror Mount 8MBM57-6.

Specifications

Model	8CMA28-10	8CMA28-25
Travel Range	10 mm	25 mm
Lead Screw Pitch	0.25 mm
Resolution In Full Step	1.25 µm
Nominal Force	70 N
Tip Shape	Round (flat on request)
Cable	1.1 m length (integrated)
Stepper Motor	28	28S
Motor Connector	HDB15(M)
Optocoupler End Limit Switches	2
Switch polarity	Pushed is open
Weight (Actuator with Cable)	0.35 kg	0.3 kg
Recommended Controllers	8SMC5-USB series

Ordering Information

Model

Travel
Range,
mm

Length,
mm

8CMA28-10

117

8CMA28-25

124
