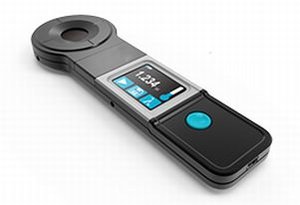

11PRONTO - Laser Power Probe (Touch Screen Controls)


		Zoom in

		Printable version


		Pocket-Size This mid to high power handheld probe is so compact it fits in your pocket!
		Easy-to-Use The touch screen color LCD allows for a friendly user interface. You can make a measurement with just the touch of a button!
		User Setable You can set the wavelength, brightness and screen orientation to adapt to your application
		Data Logging Save your data to the internal memory and then transfer it to your PC over the USB connection.
		From Low to High Powers Thanks to a low noise level and high damage threshold, the Pronto can measure powers from 1 W to 250 W
		YAG or CO2 calibration Calibrated at every wavelength between 248 nm and 2.5 µm, with a typical value at 10.6 µm
		Hands-Free Operation Place it on a flat surface or use one of the 2 threaded holes that we have integrated in the casing for safe use with optical stands.

Specifications

Model	11PRONTO-250
MEASUREMENT CAPABILITY
Spectral Range	0.19 - 20 µm
Calibrated Spectral Range	0.248 – 2.5, 10.6 µm^a
Noise Equivalent Power	10 mW
Response Time	5 sec
Measurement Accuracy	± 3 %
Display Resolution	1 mW
DAMAGE THRESHOLDS
Maximum Awerage Power	250 W
Maximum Average Power Density^b	45 kW/cm²
Maximum Exposure Time	5 sec
Maximum Device Temperature	65°C
USER INTERFACE
Measurement Controls	Wavelength Selection and User Calibration
Data Acquisition and Transfer	Simple On/Off Controls, saves to on-board memory and transfers data to the PC using the USB connection
Screen Personalization	Orientation and Brightness controls
Battery Indicator	On-screen indicator with 4 levels
GENERAL SPECIFICATIONS
Display Type	Touch screen color LCD
Display Size	28.0 x 35.0 mm (128 x 160 pixels)
Backlight	Adjustable
Internet Upgrades Via	USB port
Battery Type	Rechargeable Li-ion
Battery Life	17 hours or 4 200 measurements (with brightness set at 25%)
Battery Recharge Via	USB port
Operating Temperature Range	15 - 28 °C (max 80% RH)
PHYSICAL CHARACTERISTICS
Effective Aperture	19 mm Ø
Absorber	H9
Mounting Holes (for Post)	2 x 8-32
Dimensions	41.0W x 181.4L x 17.0D
Weight	210 g

a. With typical value at 10.6 µm for CO2 laser
b. At 1064 nm, 10 W, CW.

Ordering Information

Model

11PRONTO-250
