8-0099 - 2-axis (XY) Rotation Stage + Motorized XYZ Translation Stage

2-axis (XY) Rotation Stage + Motorized XYZ Translation Stage


		Zoom in

		Printable version

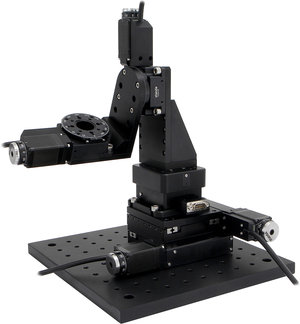

		8-0099.2 - 5-Axis Positioning System
		Consists of: - Two 8MT167S-25 Motorized Linear Stages stacked directly into XY configuration with 25x25 mm travel range - 8MVT170-13 Motorized Vertical Z Stage mounted directly on top - 8-0099 - 2-Axis Motorized Rotation Stage (360° rotation range) on top - (Optical Breadboard is sold separately)

View drawings

8-0099 - 2-Axis (XY) Rotation Stage

Consists of:

- Two 8MR151-1 Continuous Motorized Rotation Stages

- Two Angle Brackets: 2AB151-001, 2AB151-002

- (Optical Breadboard is sold separately)

Motorized stages could replaced by manual stages equivalents

View bigger

		8-0099.1 - 4-Axis Positioning System Consists of: - Two 8MT167S-25 Motorized Linear Stages stacked directly into XY configuration with 25x25 mm travel range - 8-0099 - 2-Axis Motorized Rotation Stage (360° rotation range) on top - (Optical Breadboard is sold separately)
View bigger
