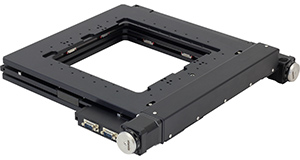

8MTF-200 - Motorized XY Microscope Stage
Motorized XY Microscope Stage
Zoom in
Printable version
View drawings
Download 3D
Designed for smooth and precise motion
200x200 mm travel range
205x205 mm central opening
Calibrated screw pair and guiding system
Very low-profile for its aperture and travel range
Custom adaptors are available upon request


Motorized XY microscope stage is ideal for transmissive and reflective imaging applications as well as processes which require access from above and below of the sample. Extremely low profile and compact design allow 8MTF-200 to be incorporated into many different types of scanning systems and easily mounted to most common microscope platforms.

Specifications

Model 8MTF-200-4247 8MTF-200-4247-MEN1 8MTF-200-B43-MEN4 8MTF-200-B43-MEN4-
LEN1-025
Kinematics & Feedback information
 Travel Range (X x Y), mm 200 x 200
 Min. Incremental Motion, μm 0.625 0.1
 Rotary Encoder Type - Optical
 Rotary Encoder Model - MEN1 MEN4
 Rotary Encoder Resolution, μm - 0.5 0.1
 Rotary Encoder Interface - TTL Differential RS422
 Rotary Encoder Internal Multiplier - NO
 Rotary Encoder Multiplication factor 1) -
 Rotary Encoder Grating Period, deg - 0.09 0.018
 Rotary Encoder Reference Mark (Index) - Yes
 Linear Encoder Type - Optical
 Linear Encoder Model - LEn1
 Linear Encoder Resolution, nm - 25
 Linear Encoder Interface - Differential
RS4221)
 Linear Encoder Internal Multiplier - YES
 Linear Encoder Multiplication factor 1) - x200
 Linear Encoder Grating Period, µm - 20
 Linear Encoder Reference Mark (Index) - YES (center)
 Absolute Accuracy 2)
  Before Calibration, µm/mm ±8/100
  After Calibration, µm request ±3 ±2 ±1.5
 Uni-Directional Repeatability, µm ±0.50
 Bi-Directional Repeatability (peak to peak) 2), µm ±2 ±1 ±0.5
 Bi-Directional Repeatability (RMS) 2), µm ±1.5 ±1 ±0.45
 Pitch 3), µrad / arcsec ±100.00 / ±20.63
 Yaw 3), µrad / arcsec ±30.00 / ±6.19
 Roll, µrad / arcsec ±30.00 / ±6.19
 Maximum Velocity (with load 4kg) 4), mm/s 30 50
 Maximum Acceleration (with load 4kg) 5), mm/s2 150 250
 Limits Switches Type (Safety) Digital Hall Sensors
 Limit Switch Polarity (Safety) Pushed is open
 Limit Switch Voltage, VDC 5...24
Load, Guiding & Transmission Information
 Design Type Motorized Ball Screw XY Planar Stage
 Ball Screw Pitch, mm 2
 Motor Model 4247 B43
 Motor Design Type Bipolar Stepper Motor 3 Phase BLDC motor
 Maximum Bus Voltage, VDC 48
 Load Capacity (Centrally Placed) 6)
  Horizontal, kg 8
  Vertical, kg N/A
 Moving Mass 7), kg 9.5
 Guiding System Ultra-precise recirculating linear rails and carriages units
Material & Environment Conditions
 Housing Material Aluminum Alloy
 Housing Coating (Finish) Black Anodizing
 Environment Pressure Normal Atmosphere
 Operating Temperature, °C 20±2
Control, Communication and Cabling
 Recommended Controllers 8) ACS Products Line or 8SMC5-USB series
 Recommended Drivers 8) ACS Products Line or 8SMC5-USB series
 Recommended Power Supply 9) PS36-4.4-4
 Recommended Communication Interface 12) EtherCAT / RS232 / USB / TCP-IP
 Cable Length, m 2 (other by request)
 Differential Outputs 10) N/A On request
Accessories Information
 Base Plate for Mechanical Interface Not required
 Z Configuration Not available
(choose from other Standa stages series)
Additional Details
 Open Aperture (W x L), mm 205 x 205
 Dimensions of Moving Platform (W x L), mm 335 x 380
 Overall Linear Stage Dimensions (W x L x H), mm 402 x 450 x 76
 Measurement System Metric / Imperial
 Orthogonality 11), µrad / arcsec 73 / 15
 Protection Level13) Optionally can be supplied with special cover (with air purge & dust protection)
 RoHS Compliant
 Weight, kg 11.8 12.1

1) With x4 evaluation; system can be delivered with standard analog SIN/COS encoder interface for personal interpolation.

2) Absolute Accuracy & Bi-Directional Repeatability measurements are processed with Zygo ZMI 501 Michelson laser interferometer.

3) Pitch & Yaw measurements are processed with 11D-ALI-COL electronic autocollimator. Resolution of 11D-ALI-COL: 1 µrad. Environment error: 1 µrad.

4) Maximum Velocity is electrically limited by encoder and driver CUT-OF frequency; maximum velocity is also limited by guiding system.

5) Maximum Acceleration is limited by Drivers` Peak Current, Motors` Peak Current and External Load (inertia). Please contact Standa for support.

6) Load Capacity is limited by position of load and integrated guiding system. Please contact Standa support for loading calculation.

7) Moving Mass is constant parameter of system which characterize m0 or inertia of unloaded system.

8) Recommended controllers & Recommended drivers can be optimized for a certain application. Please contact Standa support for recommendation.

9) Recommended power supply depends on required duty cycle and load. Please contact Standa support for recommendation.

10) Differential Outputs are available in passive (buffered) or active (modulated) way with LCMv2.

11) Stages can be assembled with better orthogonality by request.

12) Scalar Control can be implemented with USB / TCP-IP / RS-232 communication iterface; for vector control we recommend to use EtherCAT.

13) Protection of guiding system is limited and not supposed to be used in wet and dusty enviroment.


Ordering Information
Model Description
8MTF-200-4247 Open Loop Stepper Motors XY Microscope Stage
8MTF-200-4247-MEn1 Closed Loop Stepper Motors XY Microscope Stage
8MTF-200-4247-LEN1-025 Open Loop Stepper Motors XY Microscope Stage
with Linear Encoder
8MTF-200-B43-MEN4 Closed Loop BLDC Motors XY Microscope Stage
8MTF-200-B43-MEN4-LEN1-025 Closed Loop BLDC Motors XY Microscope Stage
with Linear Encoders (Dual Loop)
8MTFUHV-200-V423 Open Loop Stepper Motors XY Microscope Stage for Ultra High Vacuum
In order to choose the most appropriate and optimal model for your needs,
please apply to Standa engineers explaining required motion algorithms.
