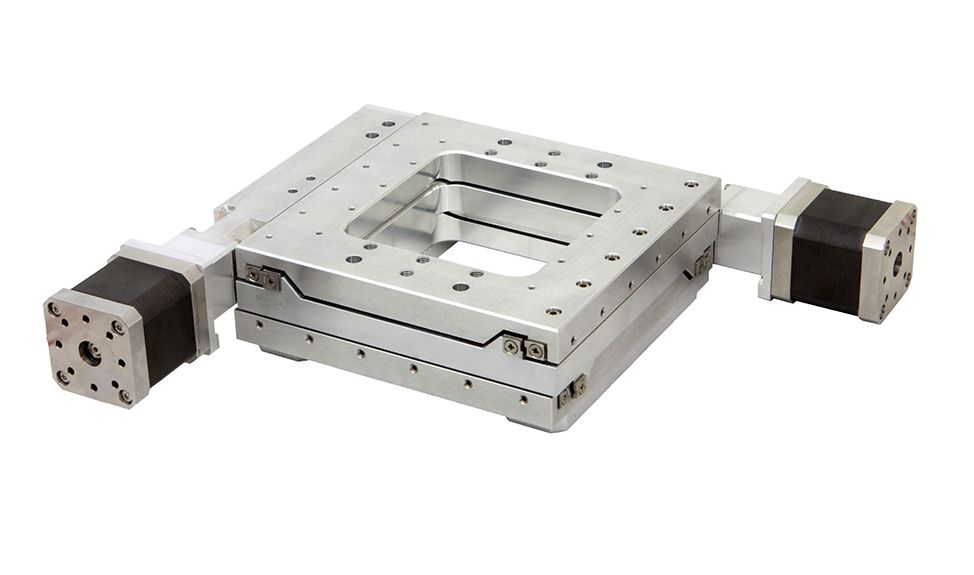

8MTFV - Vacuum Compatible XY Scanning Stage
Vacuum Compatible XY Scanning Stage
Zoom in
Printable version
View drawings
Download 3D
Travel range 40x40 mm
Custom support brackets available for various microscope types
Suitable for most major brand Microscopes and Macroviewers
For image analysis
Non-vacuum model




High vacuum compatible Sub-D, male or female, 9 or 15 pin connectors can be ordered separately. The connectors are made of glass filled polymer with a stainless steel outer and suitable for High Vacuum (10-6 Torr and temperatures up to 110°C.

Specification of HV Sub-D Connectors:
Vacuum: 10-6 Torr
Body material: DEP
Temp. range: -55°C to 110°C
Pin material: Gold plated copper alloy

Connectors of other sizes and vacuum feedthroughs are available on request.



Specifications
Travel range40x40 mm
Lead screw pitch0.5 mm
Resolution
Full Step 2.5 µm
1/8 step 0.31 µm
Max speed 5 mm/sec
Load Capacity
Horizontal15 kg
Vertical3.5 kg
Vacuum compatible cableintegrated, 2 m length
MotorsV423
Motor connector HDB15(M)
Recommended controllers8SMC5-USB
Mechanical end limit switches4 (2 per axis)
Switch polaritypushed is closed
Weight3.5 kg
Ordering Information
Model
8MTFV-75/40LS05-V423





Cant find what you want? Not a problem! Browse our standard sections and request for a vacuum modification of standard piece using this form!
