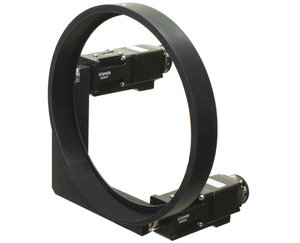

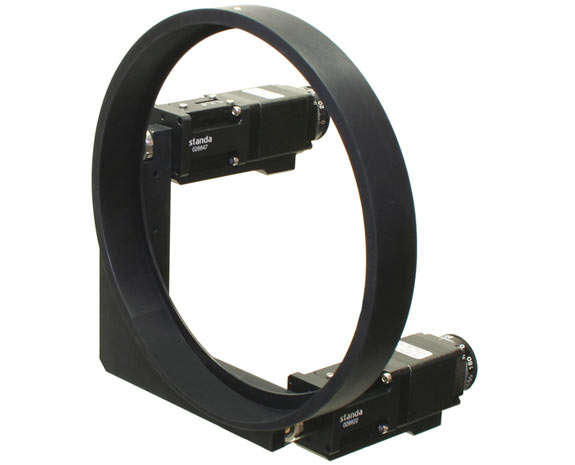

8MBM57 - Large Aperture Motorized Mirror Mount |
|
 |
|
| |
8MBM57-6
8MBM57-2 |
8MBM57-3 |
Specifications
| Model |
8MBM57-2 |
8MBM57-3 |
8MBM57-4 |
8MBM57-6 |
| For Optics, Ø |
2" (50,8mm) |
3" (77,2mm) |
4" (101,6mm) |
6" (152,4mm) |
| Mount max. aperture, mm |
52 |
77.2 |
103 |
153,5 |
| Clear aperture, mm |
49 |
73 |
97 |
146 |
| Contact lines |
2 |
| Angular range |
±3° |
±3° |
±2.5° |
±2.5° |
| Resolution in full step, arcsec |
4,37 |
4,16 |
3,31 |
2,63 |
| Lead screw pitch, mm |
0.25 |
| Resolution in full step, µm |
1.25 |
| Nominal force, N |
70 |
| Motor connector |
HDB15(M) |
| Installed actuators |
2 x 8CMA28-10 |
| Recommended controllers |
8SMC5-USB |
| Optocoupler end limit switches |
2 per actuator |
| Switch polarity |
pushed is open |
|
| |
|
|
 |
|
