7T273-10T - Low Profile two-Axis Aluminium Translation Stage of Side Control


		Zoom in

		Printable version

		View drawings

		Download 3D


		Compact X-Y configuration
		Exceptionally precise orientation of axes at 90°
		Precision movement
		10mm travel range
		Precision ball bearings
		Side control configuration

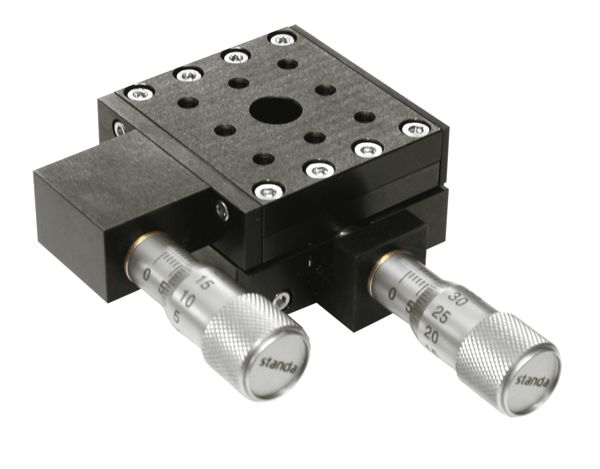

Translation Stage 7T273-10T. For your convenience we have rotated by 90° the driving screw for X-axis. Now it sits parallel to the other screw (for Y axis). So the stage is controlled from a single side. This helps in optical schemes of great concentration. In other respects. Including the specifications the stage is the same as 7T273-10.

Specifications

Travel range		10 mm



Sensitivity		1 µm



Tracking accuracy		2 µm



Reading accuracy		5 µm



(1/2 division)



Load capacity:



	Horizontal	15 kg



	Vertical	5 kg



Weight		0.38 kg
