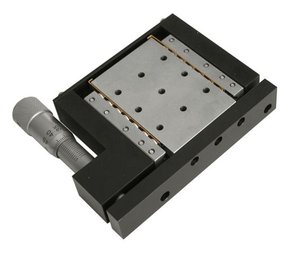

7T38 - Manual Linear Translation Stage
Manual Linear Translation Stage
Zoom in
Printable version
View drawings
Download 3D
Micrometer drive
X-Y-Z configuration available



Translation Stage 7T38

7T38 XYZ 3 axis translation. See further article for X-Y-Z stacking.



Specifications
Travel range15 mm
Sensitivity1 µm
Tracking accuracy2 µm
Scale graduation 10 µm
Load capacity
Horizontal10 kg
Vertical5 kg
Weight0.41 kg
Ordering Information
Model Price Availability
7T38 € 328.00 today





In the video below linear translation stage 7T38 in combination with angle bracket 2AB38 is used as a precision vertical positioner in multi-axis system for micromanipulation.
