BW-RAM-PLUS - Raman Spectrometer i-Raman Plus

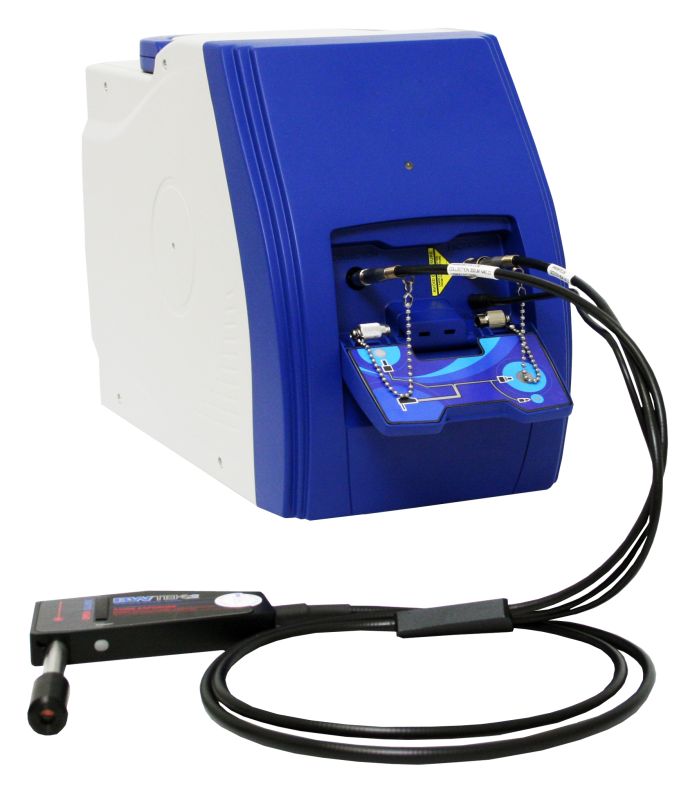

Raman Spectrometer i-Raman Plus
Zoom in
Printable version
Features and details
532nm, 785nm, and 830nm excitation wavelengths available
Patented CleanLaze® Technology for Laser Stabilization
175cm-1 of the Rayleigh Line (65cm-1 Option Available)
Fiber Optic Interface for Convenient Sampling
Up to 4000cm-1 Raman Shift Coverage
Spectral Resolution of 3cm-1
SMART
COMPREHENSIVE
QUANTITATIVE



COMPREHENSIVE – Includes comprehensive package of sampling accessories for measuring solid and liquid samples provide you the utmost utility right out of the box.

QUANTATIVE – State-of-the-art BWIQ quantitative Raman analysis software package provides an intuitive user interface, intelligent algorithms, and efficient matrix calculation power, making it easy to use by both expert and novice users.

The i-Raman® Plus is an enhanced version of our award winning i-Raman portable Raman spectrometer, now powered by our innovative smart spectrometer technology. Using a high efficiency back-thinned CCD detector with deeper cooling and high dynamic range, this portable Raman spectrometer delivers an improved signal to noise ratio for up to 30 minutes of integration time, making it possible to measure weak Raman signals. The i-Raman Plus features the unique combination of wide spectral coverage and high resolution with configurations measuring out to 4000cm-1, enabling you to measure stretching bands around 3100cm-1. The system’s small footprint, lightweight design, and low power consumption provide research grade Raman capabilities anywhere. The i-Raman Plus comes standard with a fiber optic probe, probe holder with XYZ positioning stage, cuvette adaptor for measuring liquid samples, and our proprietary BWIQ multi-variant analysis software. With the i-Raman Plus, a high precision qualitative and quantitative Raman solution is at your fingertips.

Applications:
•    Geology, Mineralogy, and Gemology
•    Bioscience and Medical Diagnostics
•    Semiconductor & Solar Inspection
•    Pharmaceutical Material Analysis
•    Polymer and Chemical Analysis
•    Environmental Science
•    Raman Microscopy
•    Forensic Analysis

Lasers
532nm Excitation < 50mW
785 Excitation < 300mW
830nm Excitation < 300mW
Laser Power Control 532nm†, 785nm, 830nm
Spectrometer Range Resolution*
BW-RAM-PLUS-532S 175cm-1 - 4000cm-1 ~ 4.0cm-1 @ 614nm
BW-RAM- PLUS -532H 175cm-1 - 3300cm-1 ~ 3.0cm-1 @ 614nm
BW-RAM- PLUS -785S 175cm-1 - 3200cm-1 ~ 4.5cm-1 @ 912nm
BW-RAM- PLUS -785H 175cm-1 - 2700cm-1 ~ 3.5cm-1 @ 912nm
BW-RAM- PLUS -830 200cm-1- 2300cm-1 ~ 4.0cm-1 @ 912nm
Detector
Detector Type Back-thinned CCD Array
Pixel Number 2048 Effective Detector Elements
Effective Pixel Size 14µm x ~ 0.9 mm
CCD Cooling Temperature -2°C
Dynamic Range 50,000:1 (Typical)
Digitization Resolution 16-bit or 65,535:1
Integration Time 6ms - 30 mins
Electronics
Computer Interface USB 3.0 / 2.0 / 1.1
Trigger Mode 5V TTL
Power Options
DC (Standard) 5V DC @ 5.5 Amps
AC (Optional) 100 - 240V AC, 50 - 60Hz
Battery Optional w/ DC only
Physical
Dimensions 6.7 x 13.4 x 9.2 inch (17 x 34 x 23.4 cm)
Weight 3kg
Operating Temperature 0°C - 35°C
Storage Temperature -10°C - 60°C
Humidity 10% - 85%
*Typical Resolution Measured Using Pen Lamp Emission, †Center wavelength and linewidth not guaranteed

Package includes:
Chosen model of i-Raman Spectrometer
One lab grade fiber optic Raman probe
One pair laser safety goggles
Windows based software BWSpec


Related products

CTL-21 BW-RAM-EX BW-RAM-REG


Ordering Information
Model
BW-RAM- PLUS -532H
BW-RAM- PLUS -785H
BW-RAM- PLUS -785S
BW-RAM- PLUS -830 
BW-RAM-PLUS-532S
