10PS12_12 - Laser Beam Profile Converters

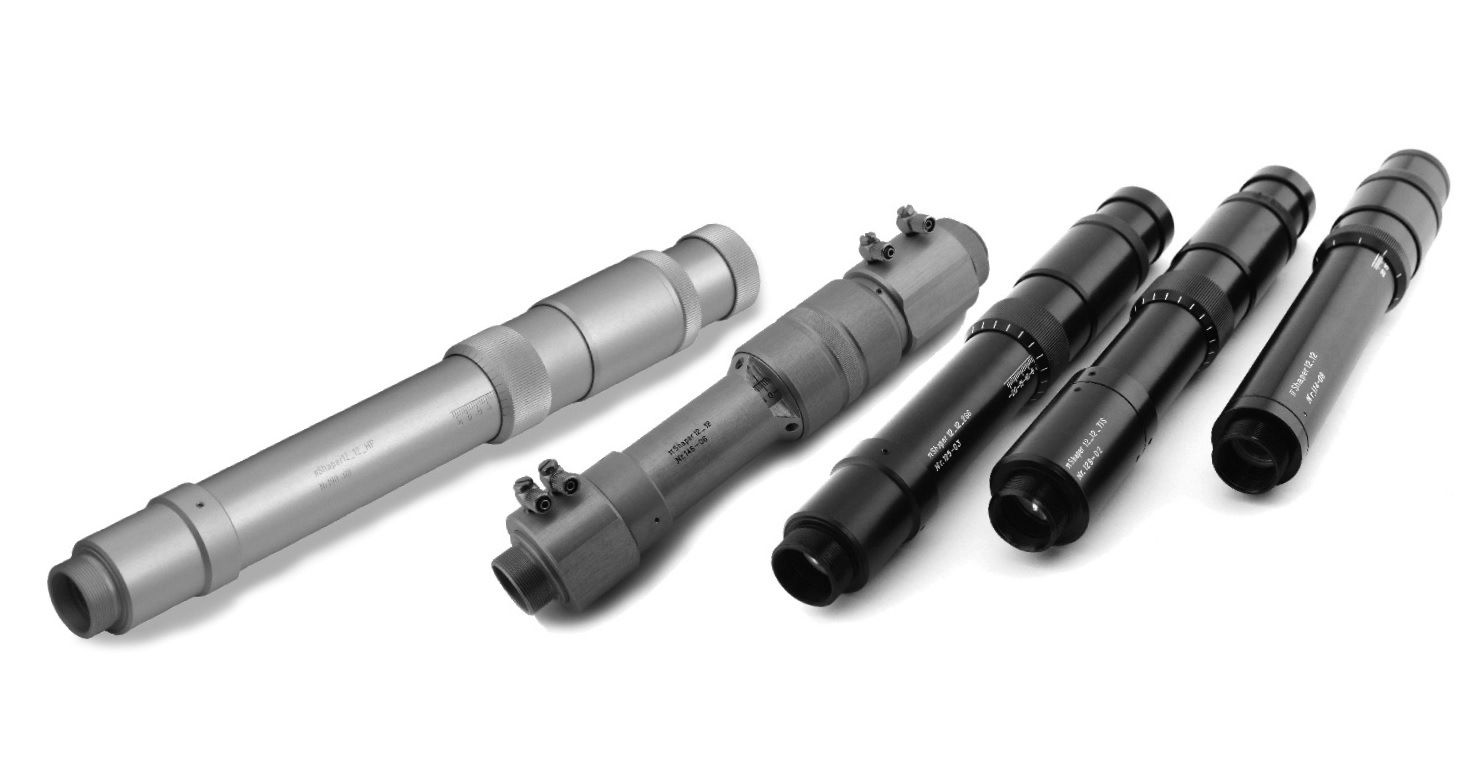

Laser Beam Profile Converters
Zoom in
Printable version
View drawings
Extremely efficient
Compact design suitable for scientific and industrial applications
Basic models suitable for high peak power pulse lasers
Long working distance

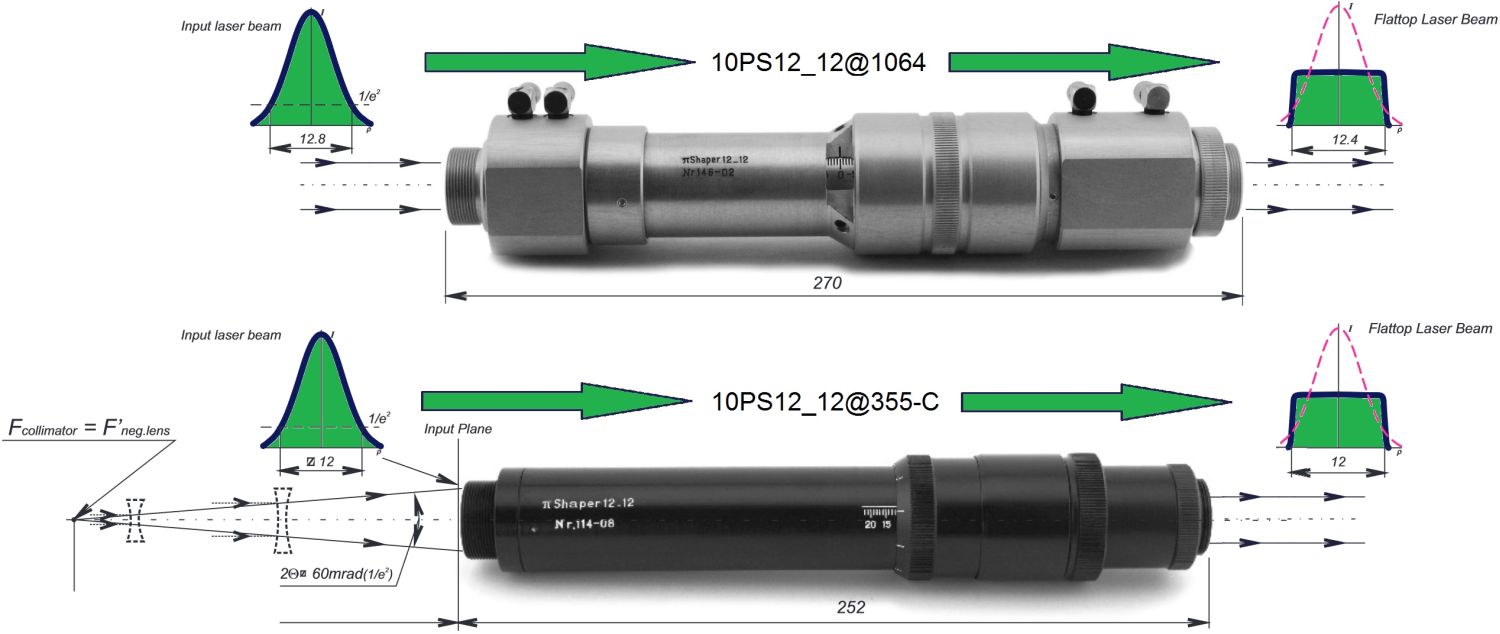

Using these unique tools it is possible to convert a single mode or multimode laser beam of similar to Gaussian intensity profile into a collimated Flattop beam with nearly 100% efficiency. Most important specific needs of applications based on the UV-lasers as well as Short-pulse Ti:Sapphire lasers are taken into account while developing the Laser Beam Profile Converter 12_12 systems.

Applications:
•   Free Electron Lasers
•   Fluorescence Technologies
•   Flying Plate Technique
•   Display Making Technologies
•   Mass-Spectrometry
•   Ultrashort Pulse Laser Pumping
•   MOPA Techniques
•   Material processing


Common specifications
Input beam TEM00 or multimode with Gaussian or similar intensity profile
Output beam - Collimated
- Flat-top (uniformity within 5%)
- Diameter 12 mm
- High edge steepness
Optional - Water cooling for CW (or average) power >500 W
- Protection windows
Mounting Input: Outer Thread M27x1, Inner Thread M23x0.75
Output: Outer Thread M33x1, Adaptor M33x1 -> M27x1 (Outer)

Basic models are Telescopes of Galilean type (without internal focus).
Models with ending -HP are versions for high peak power lasers.
Models with ending -C are Collimators without internal focus.



Ordering Information
Model Input beam diameter (1/e2),
mm		 Ouput
beam
diameter
(FWHM),
mm		 Optimum
wavelength
range		 Diameter,
mm		 Overall
length,
mm		 Weight,
g		 Applications based on
10PS12_12@1064 collimated, Ø 12.8 – 13.0 mm 12.4 1020 - 1100 49 270 530 Nd:YAG, Fiber lasers, Other NIR Lasers
10PS12_12@1064-C divergent, divergence 58 mrad 12.0 1020 - 1100 42 285 480 Nd:YAG, Fiber lasers, Other NIR Lasers
10PS12_12@1064-HP collimated, Ø 12.0 – 12.1 mm 12.0 1020 - 1100 42 328 530 Nd:YAG, Fiber lasers, Other NIR Lasers
10PS12_12@266 collimated, Ø 12.6 – 12.8 mm 10.6 250 – 270 49 270 530 4th Harmonic Nd:YAG, Lasers of UV-range
10PS12_12@266-C divergent, divergence 60 mrad 12.0 250 – 270 42 285 480 4th Harmonic Nd:YAG, Lasers of UV-range
10PS12_12@266-HP collimated, Ø 12.0 – 12.1 mm 10.6 250 – 270 42 328 530 4th Harmonic Nd:YAG, Lasers of UV-range
10PS12_12@355 collimated, Ø 12.7 – 12.9 mm 11.4 330 - 380 49 270 530 3rd Harmonic Nd:YAG, Lasers of UV-range
10PS12_12@355-C divergent, divergence 60 mrad 12.0 330 - 380 44 252 400 3rd Harmonic Nd:YAG, Lasers of UV-range
10PS12_12@355-HP collimated, Ø 12.0 – 12.1 mm 11.3 330 - 380 42 328 530 3rd Harmonic Nd:YAG, Lasers of UV-range
10PS12_12@532 collimated, Ø 12.8 – 13.0 mm 12.0 515 - 550 49 270 530 2nd Harmonic Nd:YAG, Lasers of Visual range
10PS12_12@532-HP collimated, Ø 12.0 – 12.1 mm 11.8 515 - 550 42 328 530 2nd Harmonic Nd:YAG, Lasers of Visual range
10PS12_12@TiS-HP collimated, Ø 12.0 – 12.1 mm 12.0 700 - 900 42 328 530 Ti:Sapphire lasers, Other NIR Lasers
