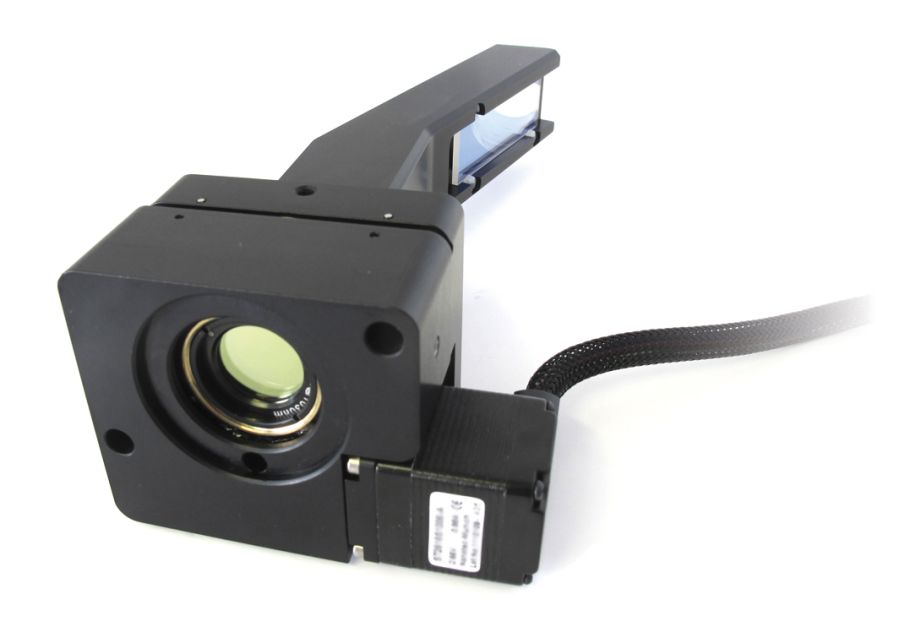

10MAPF3 - Motorized Laser Beam Attenuator


		Zoom in

		Printable version


		User-friendly software interface
		Simple text-based communication protocol
		Divides laser beam into two parallel beams of adjustable intensity ratio
		Negligible beam deviation
		High Optical damage threshold
		Low dispersion for femtosecond and high energy laser pulses
		Easy to integrate
		Stand-alone USB powered controller

Motorized Laser Beam Attenuator is a computer controlled laser beam attenuation device. It attenuates free space laser beam/pulse continuously without introducing additional energy fluctuations. Despite stand alone device look, Watt Pilot is very compact and it can be easily integrated in custom optical system.

MODEL	High Power Enhanced performance	High Power	Medium Power Enhanced performance	Medium Power
Configuration	λ/2 ZO Waveplate + 2x Brewster type thin film polarizers	λ/2 LO Waveplate + 2x Brewster type thin film polarizers	λ/2 ZO Waveplate + Polarizing cube	λ/2 LO Waveplate + Polarizing cube
Operational wavelenght range	+/-10 nm	+/-2 nm	+/-10 nm	+/-2 nm
Damage threshhold	>5 J/cm²	>5 J/cm²	>0.3 J/cm²	>0.3 J/cm²
Time between min and max attenuation	3 sec
Resolution	41.54 arcsec/step
Step accuracy in full rotation	± 4 steps
Backlash	± 4 steps

Series	CA, mm	Optimization mode	Attenuation range	Wavelength, nm	Code
Standard	10	Transmission/Reflection	0.5 - 95% for p-pol beam	355 ± 10	10MAPF3-STR-10-355W
				532 ± 10	10MAPF3-STR-10-532W
				633 ± 10	10MAPF3-STR-10-633W
				780 ± 10	10MAPF3-STR-10-780W
				850 ± 10	10MAPF3-STR-10-850W
				1064 ± 10	10MAPF3-STR-10-1064W
				1310 ± 10	10MAPF3-STR-10-1310W
				1550 ± 10	10MAPF3-STR-10-1550W
				532 ± 2	10MAPF3-STR-15-532
				633 ± 2	10MAPF3-STR-15-633
				780 ± 2	10MAPF3-STR-15-780
				850 ± 2	10MAPF3-STR-15-850
				1064 ± 2	10MAPF3-STR-15-1064
				1310 ± 2	10MAPF3-STR-15-1310
				1550 ± 2	10MAPF3-STR-15-1550
				532 ± 10	10MAPF3-STR-15-532W
				633 ± 10	10MAPF3-STR-15-633W
				780 ± 10	10MAPF3-STR-15-780W
				850 ± 10	10MAPF3-STR-15-850W
				1064 ± 10	10MAPF3-STR-15-1064W
				1310 ± 10	10MAPF3-STR-15-1310W
				1550 ± 10	10MAPF3-STR-15-1550W

Enchanced	15	Transmission	0.3 - 95% for p-pol beam	266 ± 5	10MAPF3-ETR-266
				355 ± 5	10MAPF3-ETR-355
				400 ± 5	10MAPF3-ETR-400
				515 ± 5	10MAPF3-ETR-515
				532 ± 5	10MAPF3-ETR-532
				780 ± 5	10MAPF3-ETR-780
				780-820	10MAPF3-ETR-800W
				800 ± 5	10MAPF3-ETR-800
				1020-1040	10MAPF3-ETR-1030W
				1064 ± 5	10MAPF3-ETR-1064
				1550 ± 5	10MAPF3-ETR-1550
		Reflection	0.3 - 99% for s-pol beam	266 ± 5	10MAPF3-ERE-266
				355 ± 5	10MAPF3-ERE-355
				400 ± 5	10MAPF3-ERE-400
				515 ± 5	10MAPF3-ERE-515
				532 ± 5	10MAPF3-ERE-532
				780 ± 5	10MAPF3-ERE-780
				800 ± 5	10MAPF3-ERE-800
				1064 ± 5	10MAPF3-ERE-1064
				1550 ± 5	10MAPF3-ERE-1550
		Broadband reflection	0.5 - 98% for s-pol beam	800 ± 20	10MAPF3-EBR-800W
		Broadband reflection	0.5 - 98% for s-pol beam	1030 ± 20	10MAPF3-EBR-1030W

Ultrafast	15	Reflection mode	4 - 96%	800 ± 25	10MAPF3-URE-800
		Reflection contrast mode	0.1 - 70%	800 ± 25	10MAPF3-URC-800
		Reflection mode	4 - 96%	800 ± 50	10MAPF3-URE-800W
		Reflection contrast mode	0.1 - 70%	800 ± 50	10MAPF3-URC-800W

Ordering Information

Model

10MAPF3-EBR-1030W

10MAPF3-EBR-800W

10MAPF3-ERE-1064

10MAPF3-ERE-1550

10MAPF3-ERE-266

10MAPF3-ERE-355

10MAPF3-ERE-400

10MAPF3-ERE-515

10MAPF3-ERE-532

10MAPF3-ERE-780

10MAPF3-ERE-800

10MAPF3-ETR-1030W

10MAPF3-ETR-1064

10MAPF3-ETR-1550

10MAPF3-ETR-266

10MAPF3-ETR-355

10MAPF3-ETR-400

10MAPF3-ETR-515

10MAPF3-ETR-532

10MAPF3-ETR-780

10MAPF3-ETR-800

10MAPF3-ETR-800W

10MAPF3-STR-10-1064W

10MAPF3-STR-10-1310W

10MAPF3-STR-10-1550W

10MAPF3-STR-10-355W

10MAPF3-STR-10-532W

10MAPF3-STR-10-633W

10MAPF3-STR-10-780W

10MAPF3-STR-10-850W

10MAPF3-STR-15-1064

10MAPF3-STR-15-1064W

10MAPF3-STR-15-1310

10MAPF3-STR-15-1310W

10MAPF3-STR-15-1550

10MAPF3-STR-15-1550W

10MAPF3-STR-15-532

10MAPF3-STR-15-532W

10MAPF3-STR-15-633

10MAPF3-STR-15-633W

10MAPF3-STR-15-780

10MAPF3-STR-15-780W

10MAPF3-STR-15-850

10MAPF3-STR-15-850W

10MAPF3-URC-800

10MAPF3-URC-800W

10MAPF3-URE-800

10MAPF3-URE-800W
