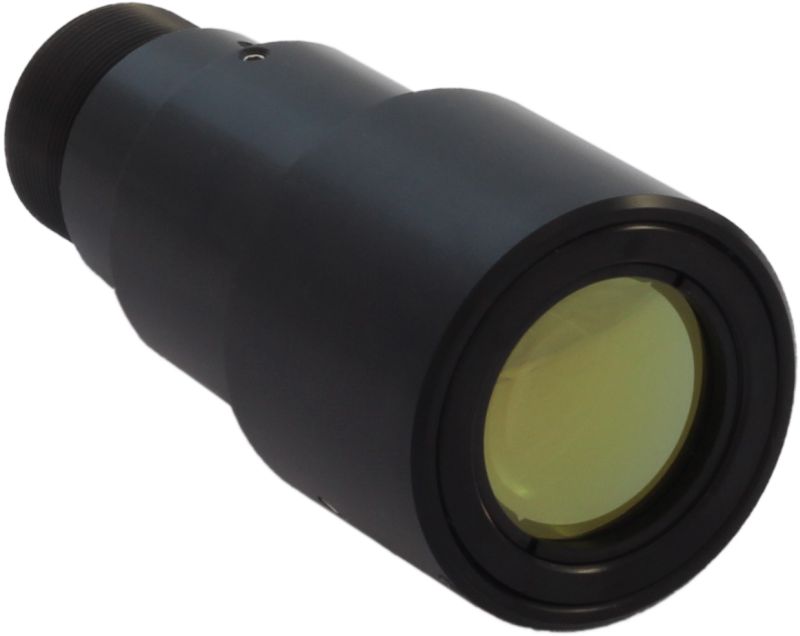

Standa Galilean type fixed magnification Beam Expanders are ideal solution to expand or reduce your laser beam diameter. Our beam expanders are a good choice for both scientific and industrial applications. Simple non-adjustable beam expanders containing two or three lenses are often used because of their reasonable prices, simplicity and small size.
Our beam expanders are compatible with our standard 5TLM-1TH, 5(M)BM, 5KOM or 5TOM series mounts.
|
Typical applications include:
• Micro drilling
• LIDAR systems
• Beam condensing
• Colimation of laser harmonics
• Cutting of solar cells
• Laser structuring of foils
• Interferometers
• Colimation of high power laser beams |
General specifications
• Optics Material: FS or UVFS. CaF2 (optional), ZnSe (optional)
• Housing material: Aluminium
• Standard wavelengths: 355 nm, 515 nm, 532 nm, 780 nm, 800 nm, 1030 nm, 1064 nm
• Transmitted wavefront distortion: λ/4 p-v at 633nm over clear aperture
• Damage threshold: >8 J/cm2 for 10 ns pulses @ 1064 nm
• Transmission: 97% |
10BE02-B subseries Laser Beam Expanders |
|
10BE02-A-5@355/532 Laser Beam Expander has dual Anti-Reflection coating. Beam Expanders with various custom coatings can be ordered on request. |
Mounting idea. Post-mounted custom Beam Expander.
| Model |
Expansion
ratio |
Input
Aperture,
mm |
Output
Aperture,
mm |
Length
(without caps),
mm |
Housing
diameter (max),
mm |
Mounting thread |
| 10BE02-A-3 |
3x |
11 |
34 |
100 |
48 |
M27x1 |
| 10BE02-A-5 |
5x |
12 |
40 |
112 |
52 |
M27x1 |
| 10BE02-LA-5 |
5x |
12 |
40 |
112 |
52 |
none |
| 10BE02-A-12 |
12x |
4 |
34 |
120 |
48 |
M27x1 |
| |
| 10BE02-B-2 |
2x |
10 |
18 |
70 |
25.4 |
None
(additional 4A-1-M27
adapter with
M27x1 thread
available) |
| 10BE02-B-3 |
3x |
5 |
18 |
60 |
25.4 |
| 10BE02-B-4 |
4x |
5 |
18 |
60 |
25.4 |
| 10BE02-B-5 |
5x |
5 |
15 |
60 |
25.4 |
| 10BE02-B-6 |
6x |
5 |
18 |
70 |
25.4 |
| 10BE02-B-7 |
7x |
5 |
18 |
70 |
25.4 |
| 10BE02-B-8 |
8x |
5 |
15 |
60 |
25.4 |
| 10BE02-B-10 |
10x |
5 |
18 |
70 |
25.4 |
| 10BE02-B-12 |
12x |
5 |
18 |
70 |
25.4 |
| 10BE02-B-14 |
14x |
5 |
18 |
70 |
25.4 |
| 10BE02-B-16 |
16x |
4 |
18 |
100 |
25.4 |
| |
| 10BE02-D-2 |
2x |
12 |
25 |
75 |
32 |
M27x1 |
| 10BE02-D-3 |
3x |
12 |
25 |
75 |
32 |
M27x1 |
| 10BE02-D-4 |
4x |
9 |
25 |
75 |
32 |
M27x1 |
| 10BE02-D-5 |
5x |
9 |
25 |
75 |
32 |
M27x1 |
| 10BE02-D-6 |
6x |
8 |
25 |
75 |
32 |
M27x1 |
| 10BE02-D-8 |
8x |
5 |
25 |
86 |
32 |
M27x1 |
| 10BE02-D-10 |
10x |
5 |
25 |
86 |
32 |
M27x1 |
| 10BE02-D-12 |
12x |
5 |
25 |
86 |
32 |
M27x1 |
| 10BE02-D-14 |
14x |
5 |
25 |
86 |
32 |
M27x1 |
| 10BE02-D-15 |
15x |
5 |
25 |
86 |
32 |
M27x1 |
| 10BE02-D-17 |
17x |
5 |
25 |
86 |
32 |
M27x1 |
When ordering, please specify desired wavelength.
Please contact us for availability of custom/non-listed expansion ratio laser beam expanders. |
