1B-AL - Aluminium Breadboards
Aluminium Breadboards
Zoom in
Printable version
View drawings
Download 3D

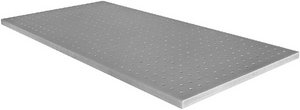

Aluminium Optical Breadboards
Thickness 15 mm
M6 tapped holes pattern on 25 mm centres
Clear and black anodized
Non-anodized breadboards ready for vacuum available on request
Imperial tapped holes pattern available on request


Get to know more about types of breadboards in 1 minute video.
Standa optical breadboard selection guide:




If imperial tapped holes pattern is required, choose breadboard from the table below and mention that requirement in your request.



Ordering Information
Model Width
(b), mm		 Length
(l), mm		 Weight,
kg		 Anodized Availability
1B-AL-10-20-015 100 200 1.05 no request
1B-AL-10-20-015-BL 100 200 1.05 black request
1B-AL-15-15-015 150 150 0.95 no request
1B-AL-15-15-015-BL 150 150 0.95 black request
1B-AL-20-20-015 200 200 1.7 no request
1B-AL-20-20-015-BL 200 200 1.7 black request
1B-AL-20-40-015 200 400 3.4 no request
1B-AL-20-40-015-BL 200 400 3.4 black request
1B-AL-25-25-015 250 250 2.65 no request
1B-AL-25-25-015-BL 250 250 2.65 black request
1B-AL-30-30-015 300 300 3.8 no request
1B-AL-30-30-015-BL 300 300 3.8 black request
1B-AL-30-45-015 300 450 5.7 no request
1B-AL-30-45-015-BL 300 450 5.7 black request
1B-AL-30-60-015 300 600 7.6 no request
1B-AL-30-60-015-BL 300 600 7.6 black request
1B-AL-40-80-015 400 800 13.5 no request
1B-AL-40-80-015-BL 400 800 13.5 black request
1B-AL-45-45-015 450 450 8.5 no request
1B-AL-45-45-015-BL 450 450 8.5 black request
1B-AL-45-60-015 450 600 11.35 no request
1B-AL-45-60-015-BL 450 600 11.4 black request
1B-AL-45-75-015 450 750 14.2 no request
1B-AL-45-75-015-BL 450 750 14.2 black request
1B-AL-60-60-015 600 600 15.2 no request
1B-AL-60-60-015-BL 600 600 15.2 black request
1B-AL-60-80-015 600 800 20.1 no request
1B-AL-60-80-015-BL 600 800 20.1 black request
1B-AL-75-75-015 750 750 23.6 no request
1B-AL-75-75-015-BL 750 750 23.6 black request
1B-AL-80-160-015 800 1600 52.55 no request
1B-AL-80-160-015-BL 800 1600 52.55 black request
1B-AL-80-80-015 800 800 26.9 no request
1B-AL-80-80-015-BL 800 800 26.9 black request
Aluminium Optical
Breadboard		 custom custom - custom request
Check alternative 1B-A Aluminum Optical Breadboards series for availability in stock today. Specifications of both series (1B-AL-... and 1B-A-...) are the same. The only difference is that in 1B-A Breadboards series mounting holes are closer to the edges (12.5 mm), counterbored through holes are also displaced closer to the edges and the fifth additional central counterbored through hole is added.
