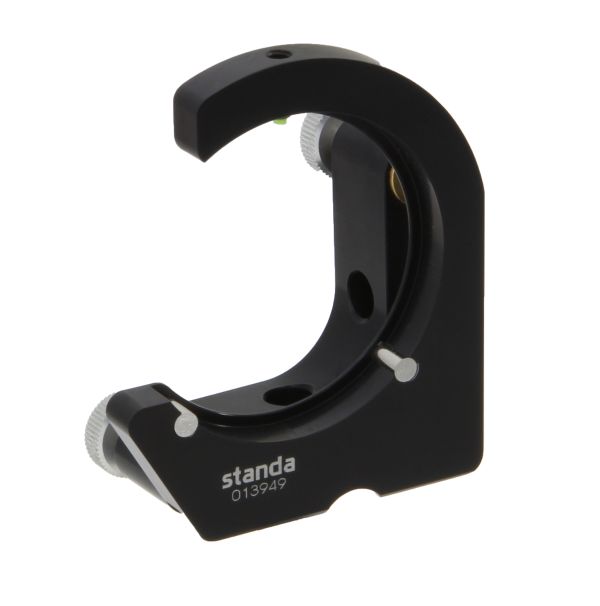

5F21-2 - Flipping Mirror/Beamsplitter Mount


		Zoom in

		Printable version

		View drawings

		Download 3D


		Flip optics in and out of the optical scheme
		Kinematic design
		Clear edge design
		Hex key drive optional
		Material: black anodized aluminium
		5F21M-2 "Mirror" version

5F21-2-SH the ending SH means that
shown model has hex screws instead of
screws with knobs as in main model 5F21-2.

Slide M4 screws through combined M6/Ø7 mounting/clearance holes to mount the unit immediately to M4 holes, or mount the unit directly on any M6 tip

Related products



Filters	Dielectric Coated Optics	Metallic Coated Optics

Similar products

5F21-1	5F23	8MFM

Specifications

Fine screw thread			M6x0.25



Tilt/tip range			8°



Sensitivity			3 arcsec



Optics diameter			50.8mm optics (2")



Clear aperture			49 mm



Repeatability			20 µrad
