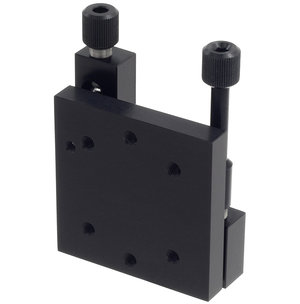

5UM122T - Universal Mirror Mount / Platform


		Zoom in

		Printable version

		View drawings

		Download 3D


		Original L-shaped flat spring
		Hardened inserts under adjusters
		Ideal for high-density optical schemes
		Adjustment of both angles is controlled from a single side
		Fine adjustments screws with 0.25mm pitch.
		Travel range ± 2°

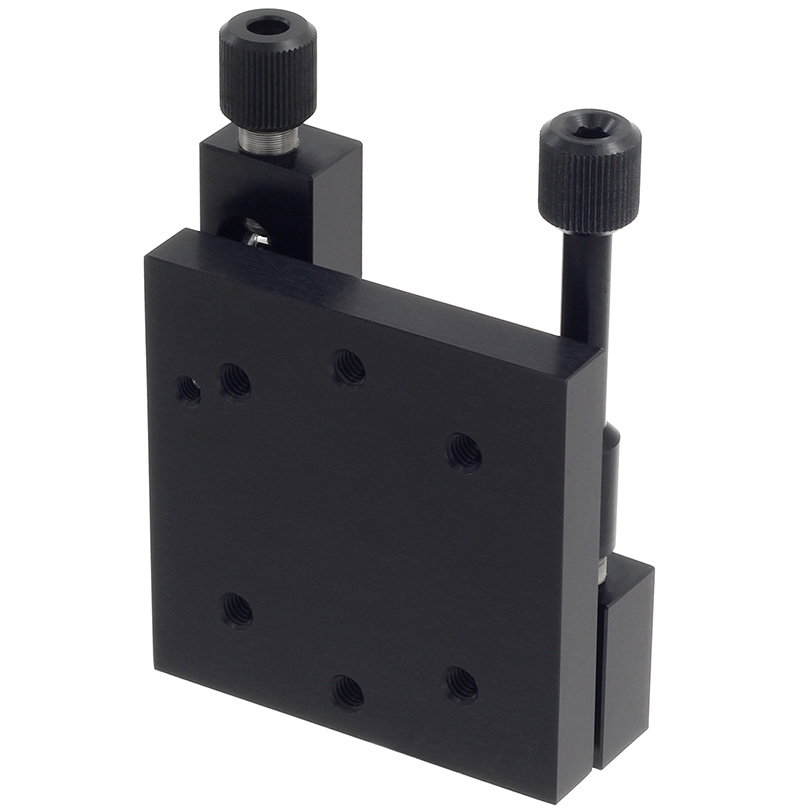

Precision Optical Mounts of Side Control enable to greatly increase thickness of optical elements as it has a convenient access to the adjustment handles. L-shaped flat spring of original design renders the great stability of a mount's platform. The spring performs two functions: work as a usual spring, and eliminate polarizing rotation of the platform. Angular range is ± 2° about each of two orthogonal axes. Precision screws with pitch of 0.25 mm render sensitivity of 10 arcsec. Three M4 tapped holes on the sides of the base and on its back allow a variety of mounting configurations, e.g. horizontal and vertical. Beamsplitters / optics mount is produced from black anodized aluminium. L-shaped spring is produced from high quality stainless spring steel.

The Universal Mirror Mount / Platform 5UM122T is suited for precise adjustments of standard mirrors which can be directly bound to it. The mount may also be used in horizontal position as a tilt table. Then it can be used to align opto-mechanics around two axes.

Related products



Off-Axis Parabolic Mirrors	Dielectric Coated Optics	Metallic Coated Optics

Similar products

5OBM119T	5LAM124T	5BM121T

Specifications

Fine screw thread			M6x0.25



Travel range			± 2°

Ordering Information

Model

Weight

Price

5UM122T

0.12

€ 76.00
