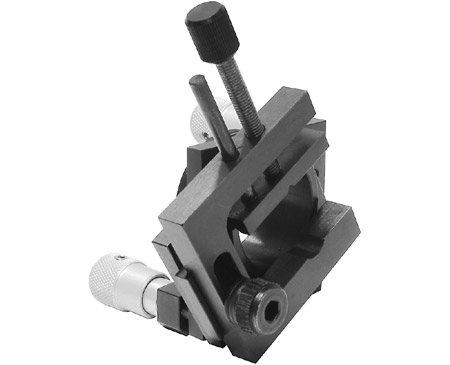

Polarization optics mount provides 360° rotation around the optical axis. Ideally suitable for positioning of polarization filters.
Highly Stable Precision L-shaped Optical Mounts are designed on the basis of two angular adjustment mounts, and are produced of steel with black chemical finishing. Special figure spring is used in these Mounts for two purposes:
- It provides pre-loading against the tips of two precise driving screws for elimination of backlash.
- It ensures the absence of the roll coordinate. The Highly Stable Precision L-shaped Optical
Mounts have two M10x1 threaded mounting holes for mounting of the actuators. This allows to use all STANDA driving screws with these mounts. M6 tapped holes on the sides provide a wide variety of mounting configurations, either horizontal or vertical. A special L-shaped design of the polarization optics mounts provides for maximum clear aperture.
The stage comes with 9S65M screw as standard. You don't have to specify this screw in your order. If you order the stage with alternative screws, please specify this in order, by appending the screw code name to the stage code.
|
