4H29 - Push Holder
Push Holder
Printable version
View drawings
Download 3D
One holder for optics of various sizes
Special method of fixation
Holds optics from 13 to 42 mm diameter.
Holds thin lenses or long-barrel lens assemblies

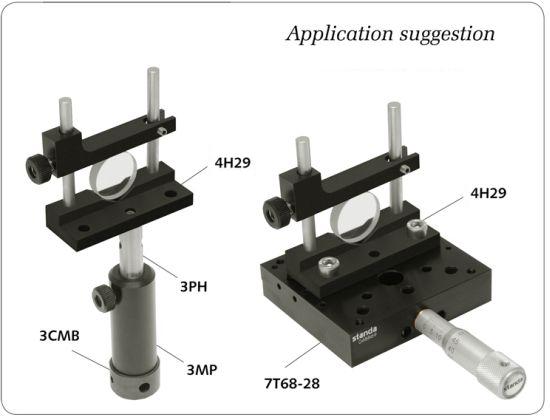

Push Holder 4H29 holds optics of any shape or configuration: round and rectangular, with negligible loss of clear aperture, even at large angles of incidence. The top support is clamped in position pushing the special place and tightening the knurled screw. This provides gentle but firm fixation. After mounting the component and holder can be exchanged completely as one unit. Material: Black anodized aluminum.


Adjustable Height V-Mount

Ordering Information
Model Weight Price Availability
4H29 0,14 € 49.00 today
