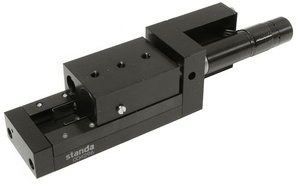

8MT173-DCE2 / -DCJ - Translation Stage with DC motor |
|
 |
|
| |
Joystick for 8MT173-DCJ
Model 8JX.01 - 1 axis control |
8JXY-02
Joystick for operating DC motor
2 axis control |
8MT173-DCE2 series stages are supplied with DC motor including encoder. DC motor provides smoother motion and closed loop operation. High number of motor reduction gear provides high resolution, but low speed in turn. Ideal for applications demanding high accuracy, but not sensitive to speed limitations.
8MT173-DCJ series stages are equipped with DC motor without encoder and can operated with joystick only. Ideal for systems with own feedback, e.g. visual feedback when used with microscope. |
Vacuum compatible 8MT173V-DCE series stages are equipped with 10-6 Torr vacuum compatible DC motor, all mechanical parts are lubricated with High vacuum compatible grease. Aluminum parts are not anodized. Stages are cleaned in vacuum chamber and packed before dispatch, so that it can be immediately placed in vacuum chamber after purchase without spoiling the vacuum. Cleaning and packing not included in price. |
| Model |
8MT173-DCE2 |
8MT173-DCJ |
8MT173V-DCE |
| Travel range, mm |
10 | 20 | 25 | 30 |
| Lead screw pitch, mm |
0.25 |
| Resolution, µm |
0.058 |
- |
0.028 |
| Minimal incremental motion, µm |
0.1 |
0.1 |
0.1 |
| Bi-directional Repeatability, µm |
0.4 |
| Max. speed*, mm/s |
0.5 |
0.038 |
0.16 |
| Load capacity: |
| Horizontal, kg |
5 |
Vertical, kg
(motor position from below only) |
1 |
| Cable |
integrated, 1.6 m length |
integrated vacuum compatible cable, 2 m length |
| Motor connector |
HDB15(M) |
DB9(M) |
HDB15(M) |
| DC Motor |
DCE369751 |
DCJ252445 |
DCE1841 |
| Weight, kg |
0.43 | 0.46 | 0.47 | 0.48 |
| Assemblies: |
| X-Y |
2CP173-20 |
2CP173V-20 |
| Z |
2AB173-20 |
2AB173V-20 |
| Recommended controllers |
8DCMC1-USB
8SMC5-USB |
8JX.01 8JXY.01 |
8DCMC1-USB
8SMC5-USB |
| Mechanical end limit switches |
2, pushed is "closed"* |
* 8MT173-30DCJ each limit switch has two wires: wiring for “pushed is open” and wiring for “pushed is closed” |
|
|
| |
|
|
 |
|
|
 |
|
|
|
|
Translation Stage with DC motor
